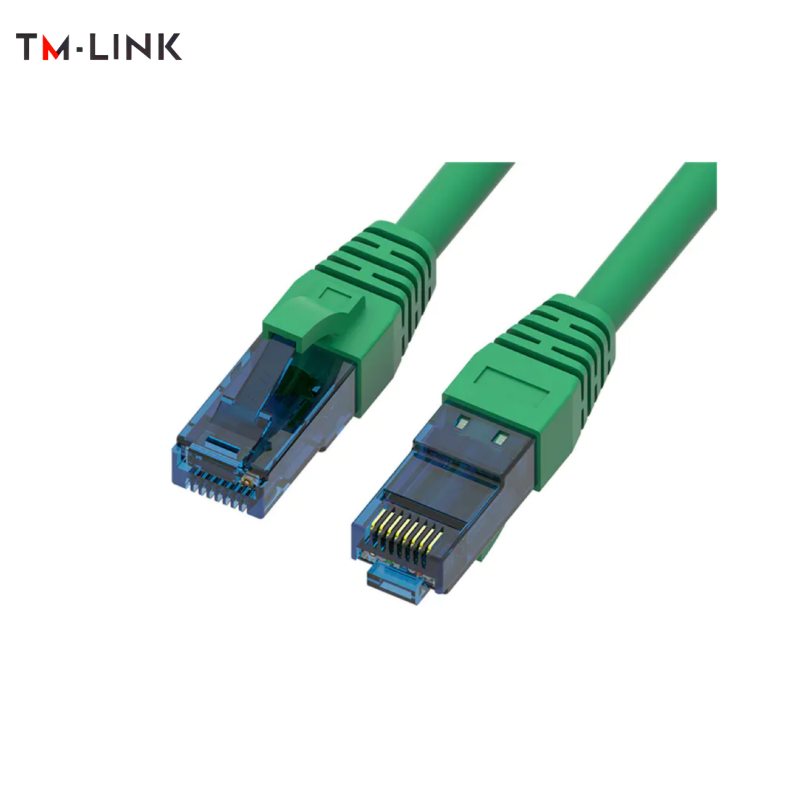

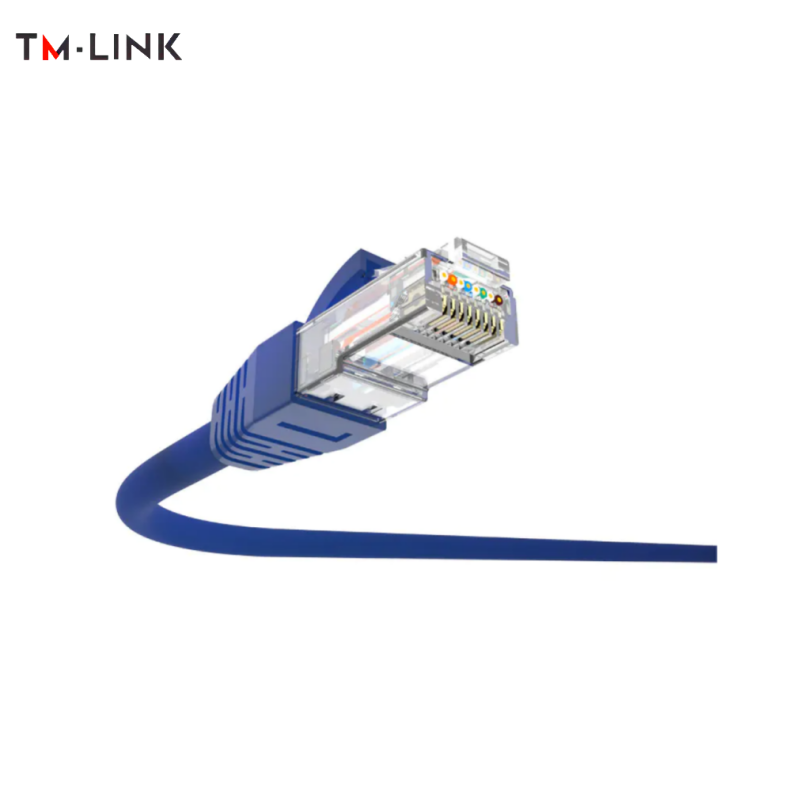

Unshielded U-UTP 10G CAT.6A Patch Cord

Unshielded U/UTP 10G CAT.6A Patch Cord

High quality Cat.6A U/UTP Patch Cord made by Cat.6A S/FTP Cable + Cat.6A UTP Plug.Both ends with shielded 50U" gold thickness RJ45 male connectors. 100% component test to guarantee the quality.

● Follow ANSI/TIA-568.2-D & ISO/IEC 11801

● 10G Cat.6A Patch Cord with 100% Component Test by DSX-8000 & DSX-5000

● Bare Copper with More Stable Performance

● 50U" Gold Plating RJ45 Plugs with Patented Design

● Various Colors & Molding Available

● Mating Cycles: Up to 1200 Times

● Suitable 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

● Operation Temperature Range:-10~60 ℃

● UL / ETL / DELTA / 4PPoE / CE Certified & Comply with RoHS & REACH

Standards & Features

Patch Cords Meet the Following Standards:

● ISO/IEC 11801:2011

● ANSI/TIA-568.2-D

● ANSI/TIA-1096-A (FCC Part 68)

● EN50173-1:2011

● UL 444

● 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

Product Description

• Part No. & Description

6AUTXX : Cat.6A U/UTP Stranded Round Patch Cord, Molded, PVC/LSOH/TPE/PUR

• Quality Assurance

100% Cat.6A Component Test (provide original test data to our customer)

Made by Cat.6A S/FTP Cable + Cat.6A UTP Plug , with better performance.

• Certificate

UL/ETL/DELTA/4PPoE/CE Certified & Comply with RoHS & REACH

• Application

* Ethernet Networking

* Computer Networking Project

* Audio & Data Transmission

* Digital Networking

* Broadband Networking Communication

• Standard Color Code

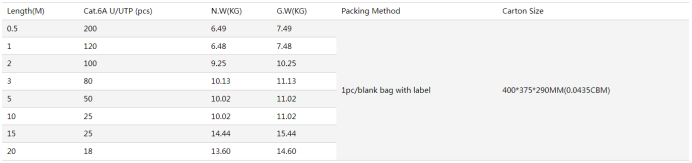

• Standard Package Rate

Product Constructure

Wire Colour Code

white - blue/blue

white - orange/orange

white - green/green

white - brown/brown

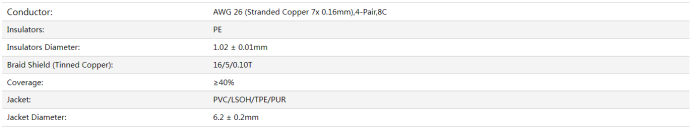

• Component

• Electrical Characteristics

• Mechanical characteristics

OEM/ODM Case

With more than 35 years history and profession R & D team

We have rich experiences in producing OEM/ODM cases.

•  Customized Logo on Plug & Boot

•  Special Printing on Cable

•  Special Design on Package & Label

•  Independent Package

•  Different Color & Different Lengths Available

•  Different Molding/Strain Relief

We can also design it according to our customer's specific demand!
