CAT.8 S-FTP Patch Cord

Cat.8 S/FTP Patch Cord

High quality Cat.8 S/FTP 24AWG Patch Cord certified by GHMT. Support Bandwiths of 2000MHz at Channel Length up to 30 Meters. 100% test to guarantee the quality.

● Follow ANSI/TIA-568.2-D & ISO/IEC 11801

● Support 25G BASE-T & 40G BASE-T

● Support Bandwiths of 2000MHz at Channel Length up to 30 Meters

● Cable Wire Gauge: 22 ~ 26AWG

● Cable Outer Diameter:6.0 ~ 8.5mm

● Bare Copper with More Stable Performance

● 50U" Gold Plating RJ45 Plugs with Patented Design

● Various Colors & Molding Available

● Mating Cycles: Up to 1200 Times

● Suitable 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

● Operation Temperature Range:-10~60 ℃

● UL / ETL / DELTA / 4PPoE / CE Certified & Comply with RoHS & REACH

Standards & Features

Patch Cords Meet the Following Standards:

● ISO/IEC 11801:2011

● ANSI/TIA-568.2-D

● ANSI/TIA-1096-A (FCC Part 68)

● EN50173-1:2011

● UL 444

● 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

Product Description

• Part No. & Description

C8SSXX : Cat.8 S/FTP  24AWG Stranded Round Patch Cord, Molded, PVC/LSOH/TPE/PUR

• Quality Assurance

100% Cat.8 Channel Test (provide original test data to our customer)

• Certificate

GHMT/UL/4PPoE/CE Certified & Comply with RoHS & REACH

• Application

* Ethernet Networking

* Computer Networking Project

* Audio & Data Transmission

* Digital Networking

* Broadband Networking Communication

• Standard Color Code

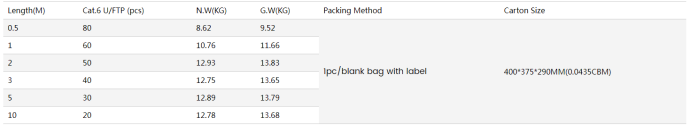

• Standard Package Rate

Product Constructure

Wire Colour Code

white - blue/blue

white - orange/orange

white - green/green

white - brown/brown

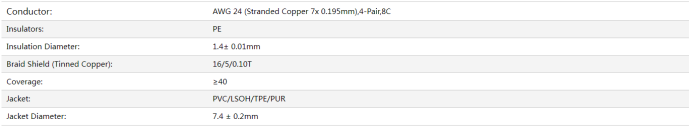

• Component

• Electrical Characteristics

• Mechanical characteristics

OEM/ODM Case

With more than 35 years history and profession R & D team

We have rich experiences in producing OEM/ODM cases.

• Customized Logo on Plug & Boot

• Special Printing on Cable

• Special Design on Package & Label

• Independent Package

• Different Color & Different Lengths Available

• Different Molding/Strain Relief

We can also design it according to our customer's specific demand!
