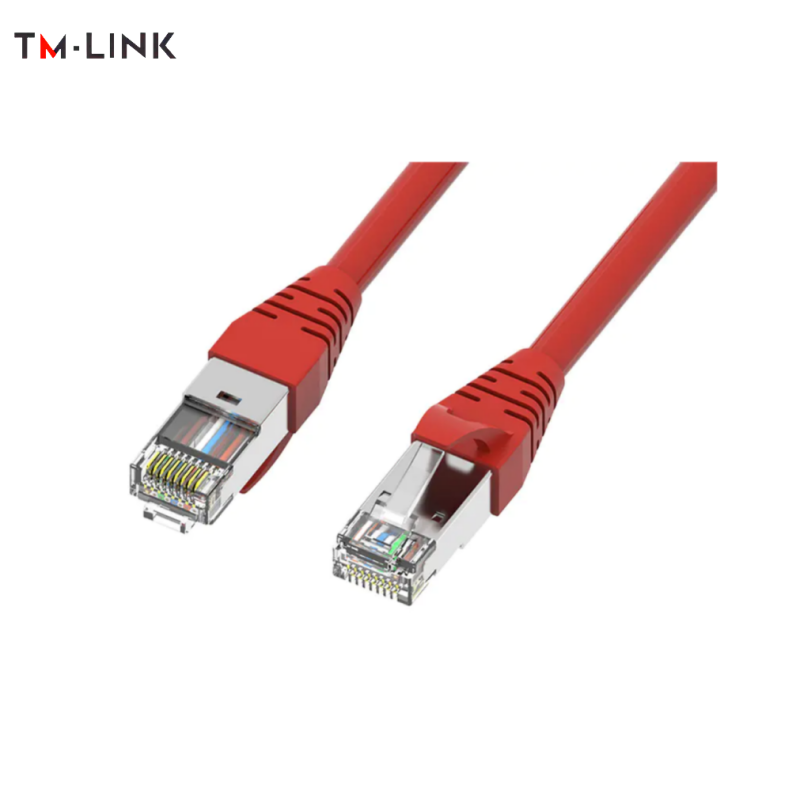

Shielded FTP CAT.5E Patch Cord

Shielded FTP CAT.5E Patch Cord

High quality Cat.5E FTP Patch Cord. Both ends with shielded 50U" gold thickness RJ45 male connectors. 100% component test to guarantee the quality.

● Follow ANSI/TIA-568.2-D & ISO/IEC 11801

● Cat.5E patch cord with 100% Continuity Test.(Component Test Optional)

● Bare Copper with More Stable Performance

● 50U" Gold Plating RJ45 Plugs with Patented Design

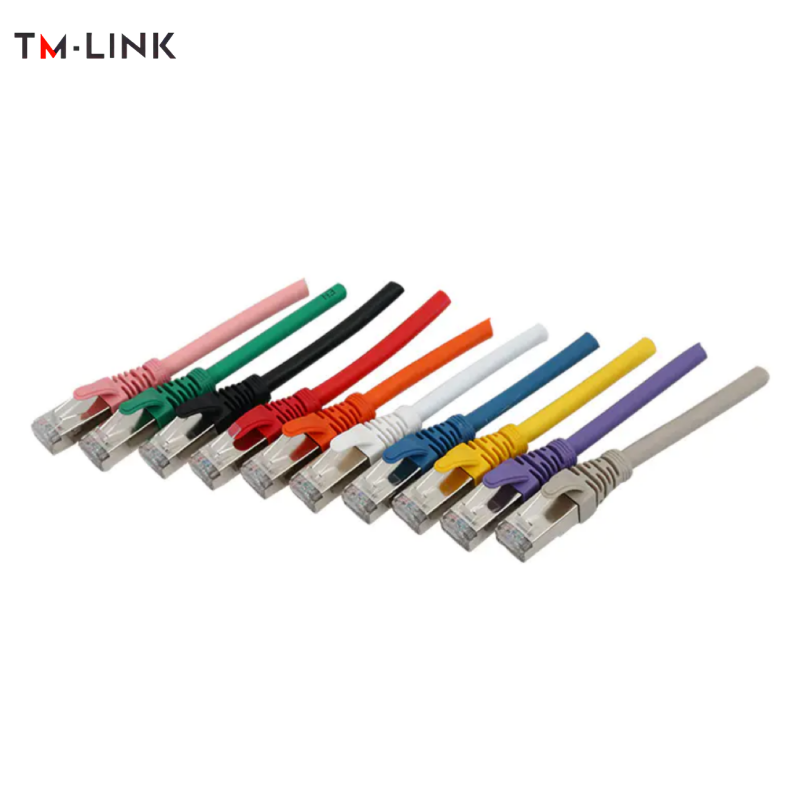

● Various Colors & Molding Available

● Mating Cycles: Up to 1200 Times

● Suitable 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

● Operation Temperature Range:-10~60 ℃

● UL / ETL / DELTA / 4PPoE / CE Certified & Comply with RoHS & REACH

Standards & Features

Patch Cords Meet the Following Standards:

● ISO/IEC 11801:2011

● ANSI/TIA-568.2-D

● ANSI/TIA-1096-A (FCC Part 68)

● EN50173-1:2011

● UL 444

● 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

Product Description

• Part No. & Description

5EFTXX : Cat.5E FTP Stranded Round Patch Cord, Molded, PVC/LSOH/TPE/PUR

• Quality Assurance

100% Continuity Test (Component Test Optional)

• Certificate

UL/ETL/DELTA/4PPoE/CE Certified & Comply with RoHS & REACH

• Application

* Ethernet Networking

* Computer Networking Project

* Audio & Data Transmission

* Digital Networking

* Broadband Networking Communication

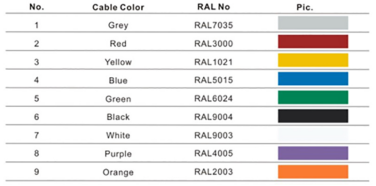

• Standard Color Code

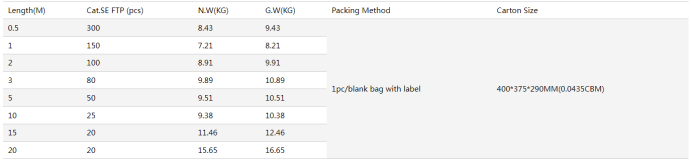

• Standard Package Rate

Product Constructure

Wire Colour Code

white - blue/blue

white - orange/orange

white - green/green

white - brown/brown

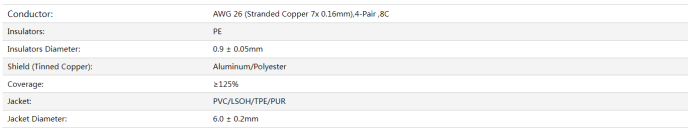

• Component

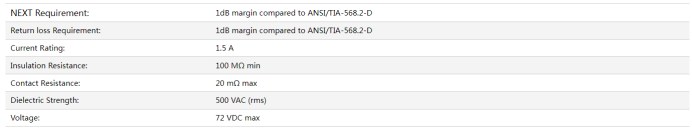

• Electrical Characteristics

• Mechanical characteristics

OEM/ODM Case

With more than 35 years history and profession R & D team

We have rich experiences in producing OEM/ODM cases.

•  Customized Logo on Plug & Boot

•  Special Printing on Cable

•  Special Design on Package & Label

•  Independent Package

•  Different Color & Different Lengths Available

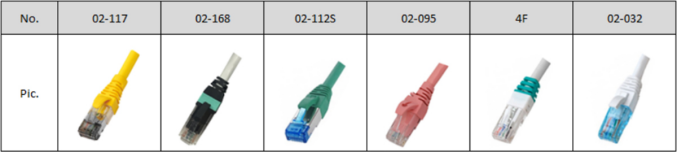

•  Different Molding/Strain Relief

We can also design it according to our customer's specific demand!
