Standard 19 cabinet universal tray

EMAIL

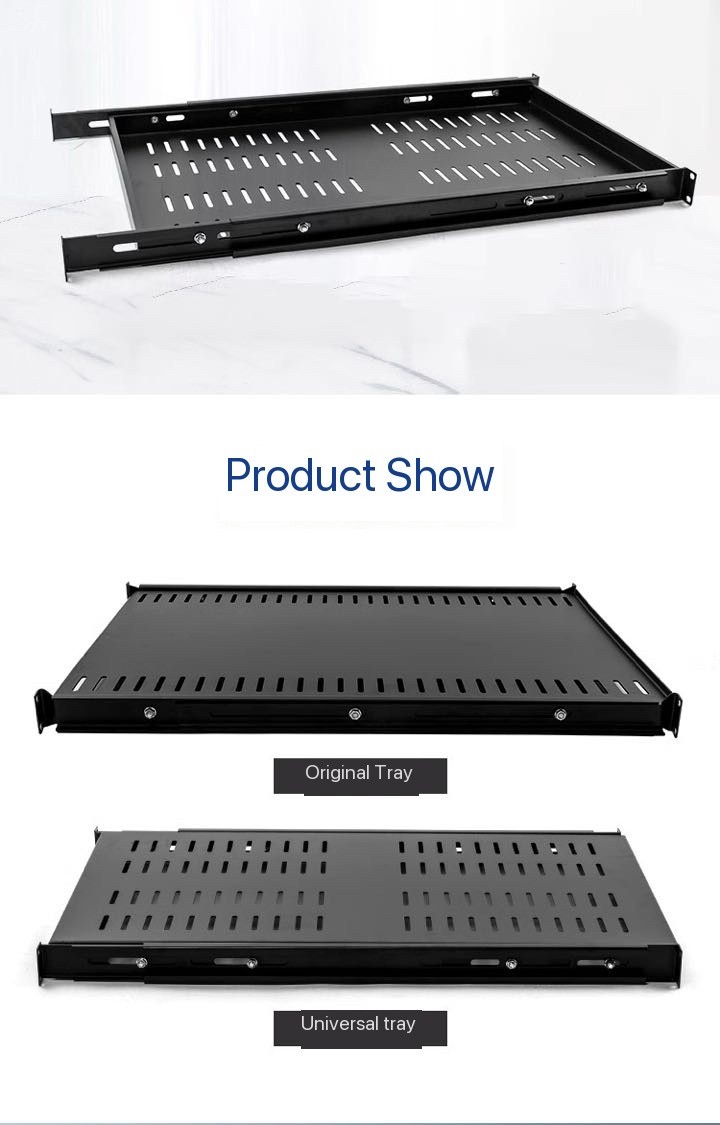

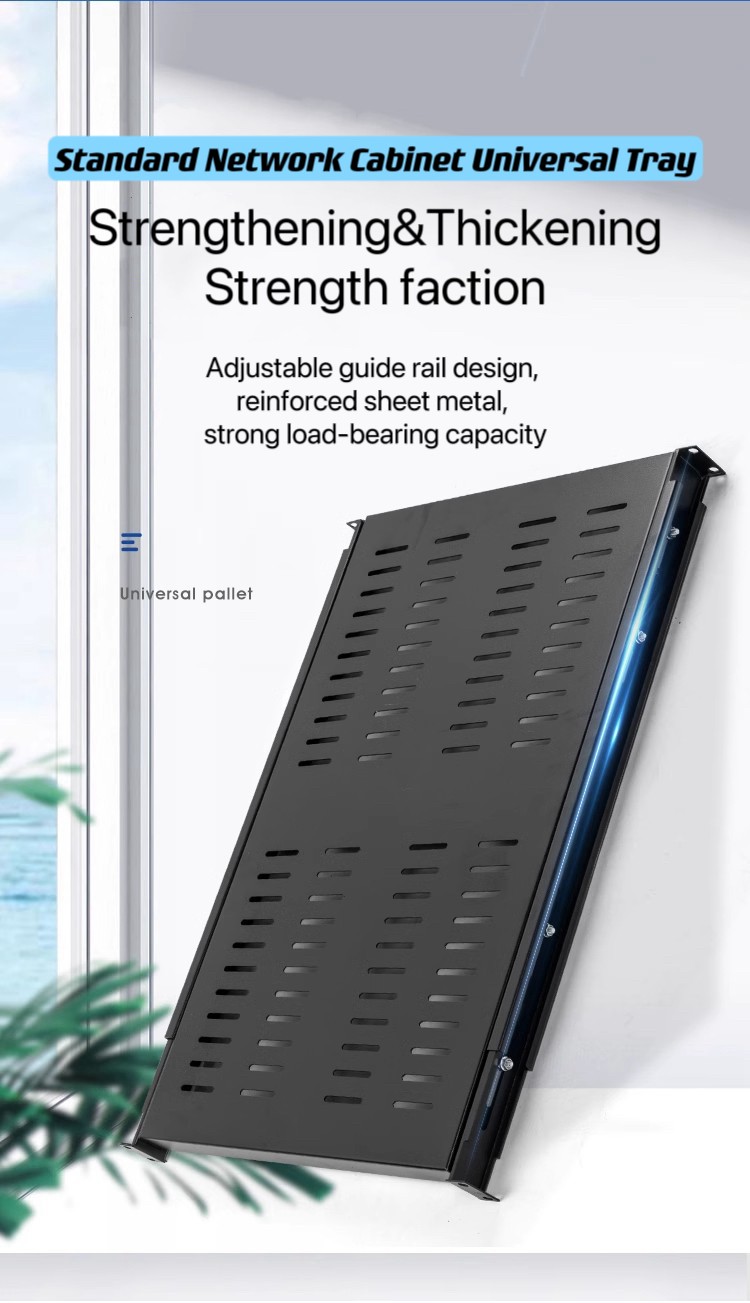

Standard 19” cabinet universal tray

1.Bearing capacity of 114 KG, occupying 1U of space;

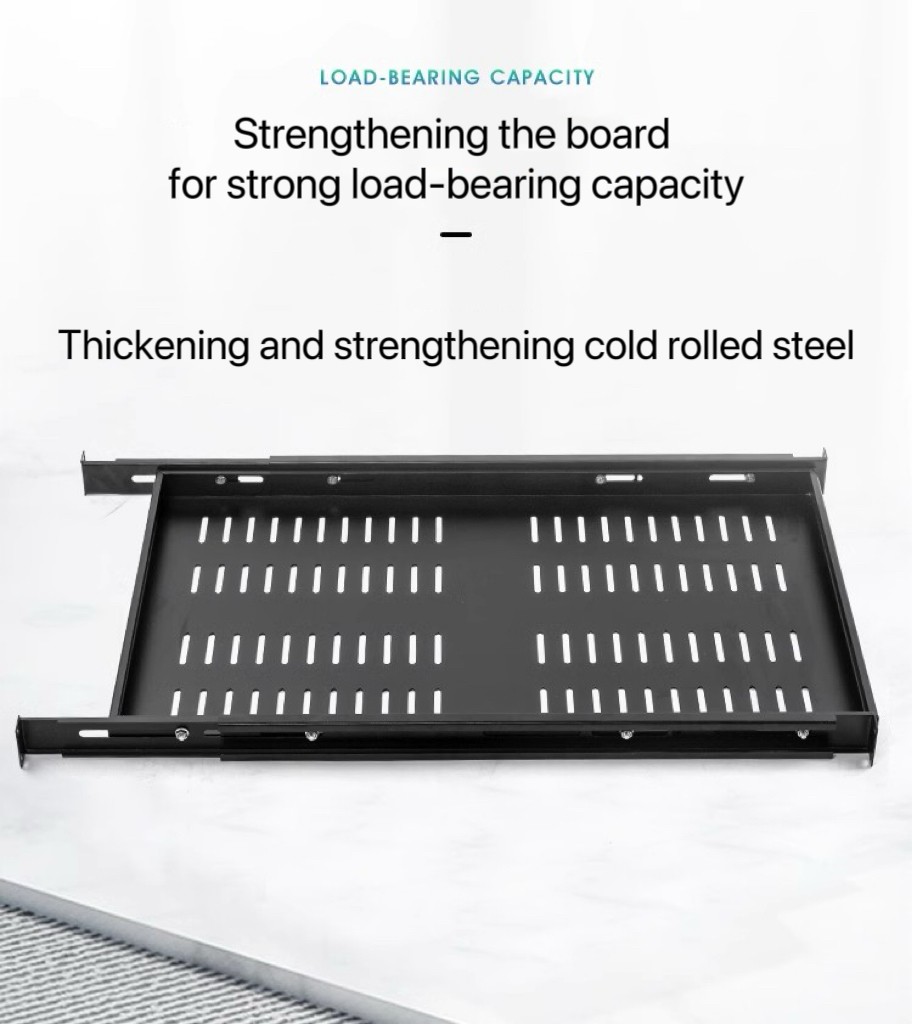

2.Thinning of the cold-rolled steel plate;

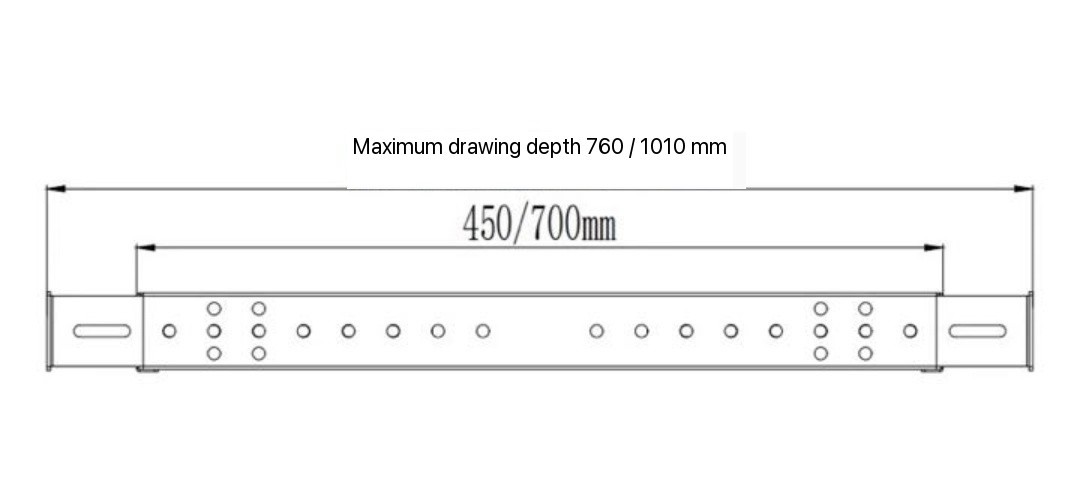

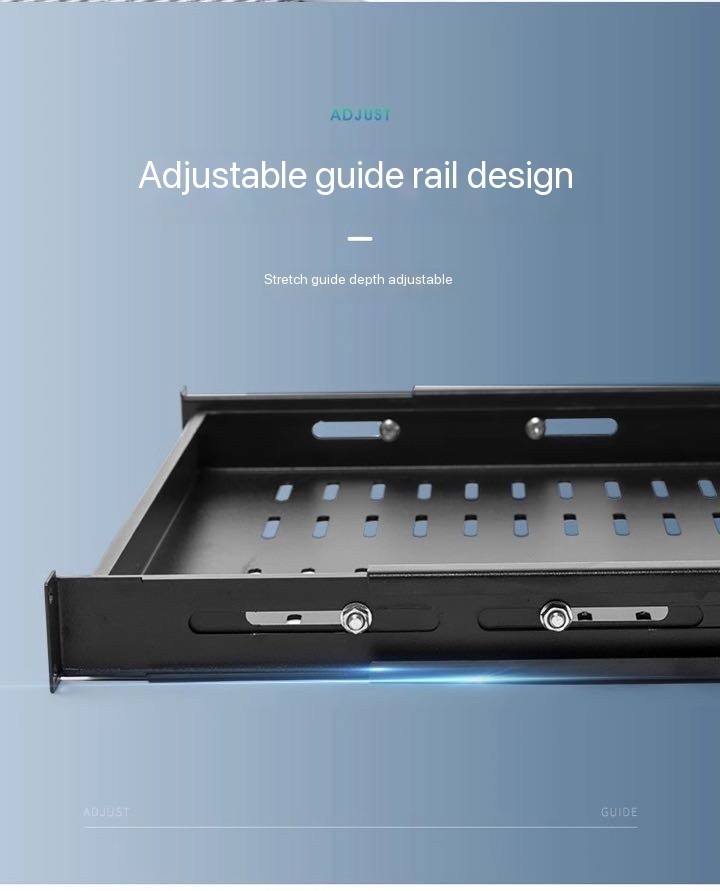

3.Precision design slide, smooth push and pull, use at ease;

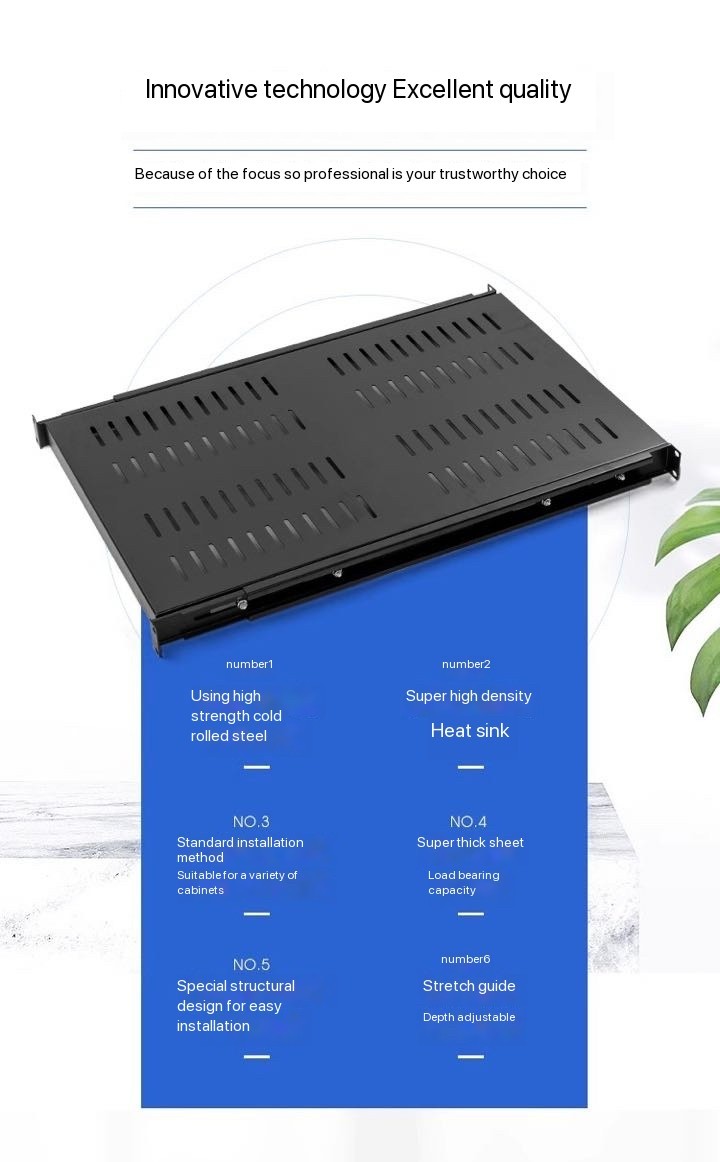

4.Neat heat dissipation hole, stable heat dissipation

Size（Width*Length）	485*285mm	Apply to	600 Cabinet
Size（Width*Length）	485*500mm	Apply to	800 Cabinet
Size（Width*Length）	485*620mm	Apply to	1000 Cabinet
Thickness of slab	1.0mm	Heat radiation	The surface has high-density cooling holes
Color	Black	Material	Cold rolled steel

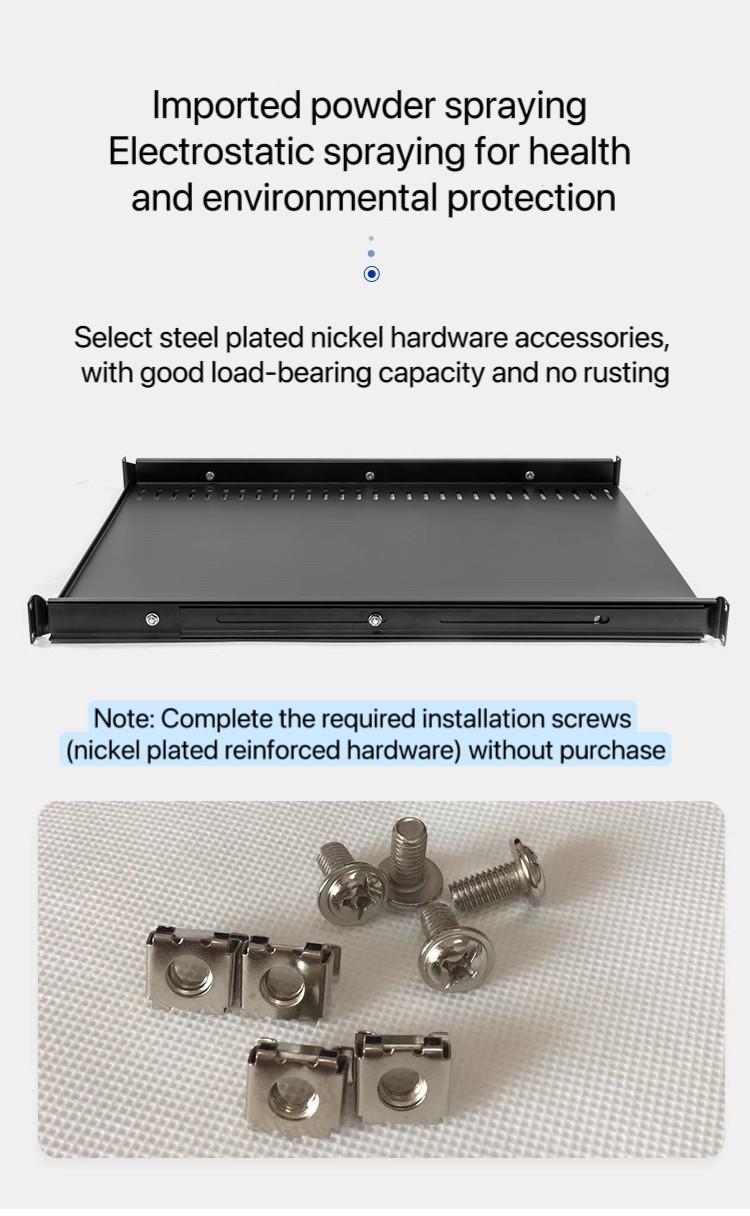

customization	Different needs can be customized	Configuration	A bag of special screws
