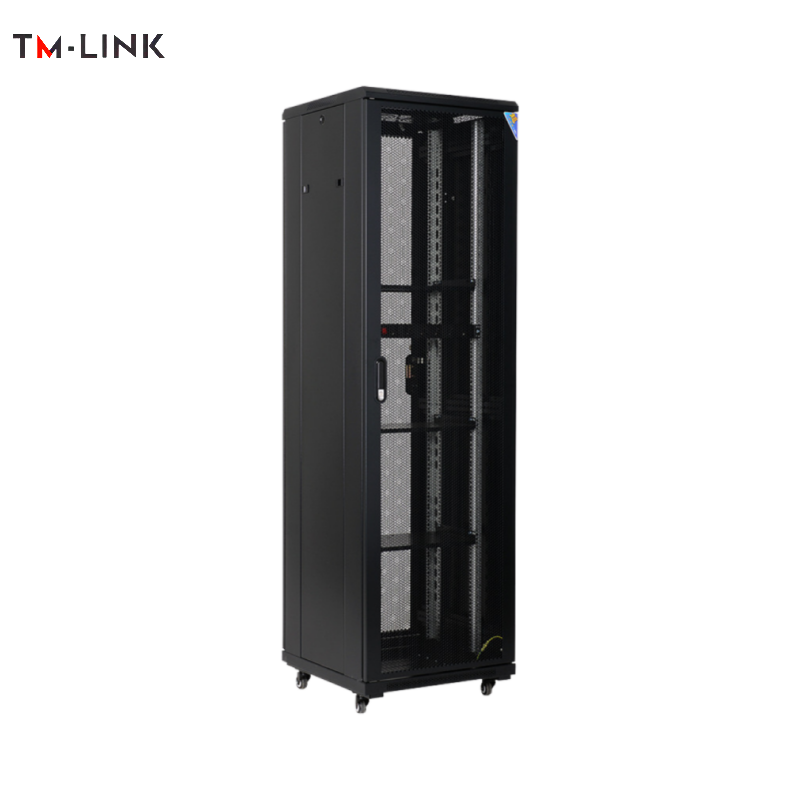

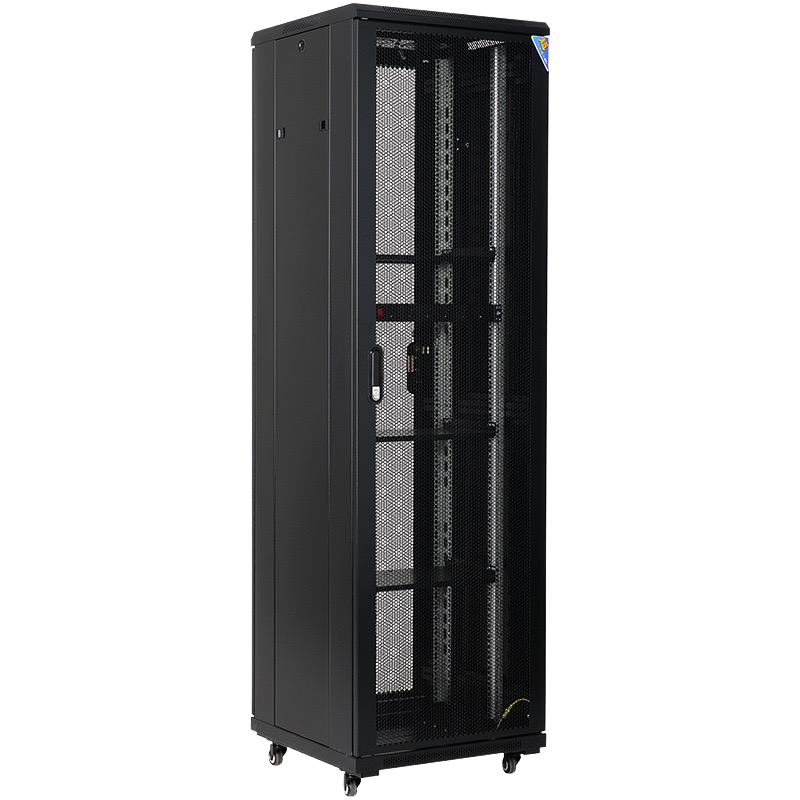

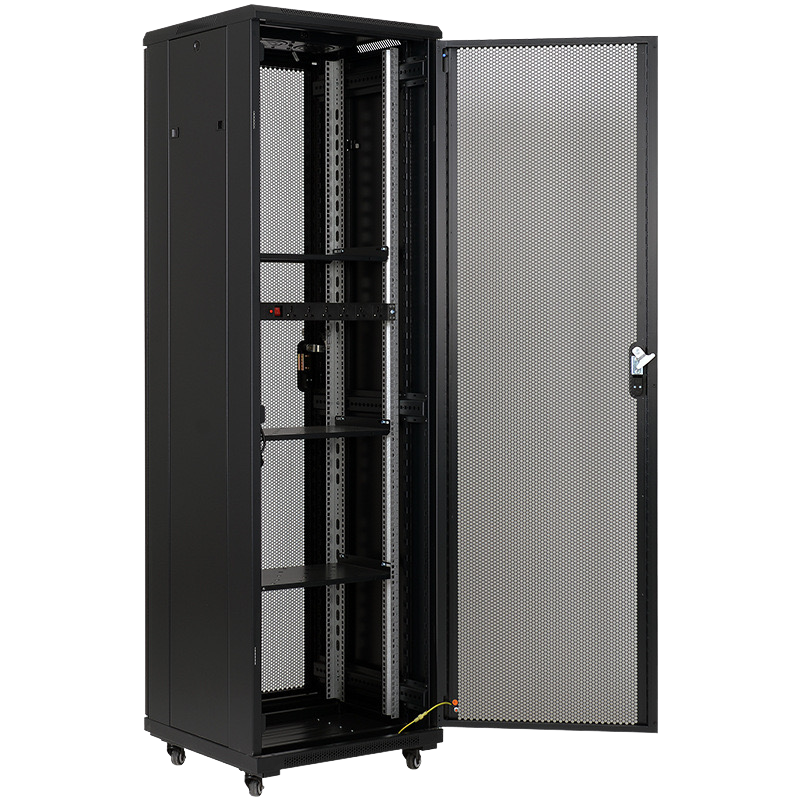

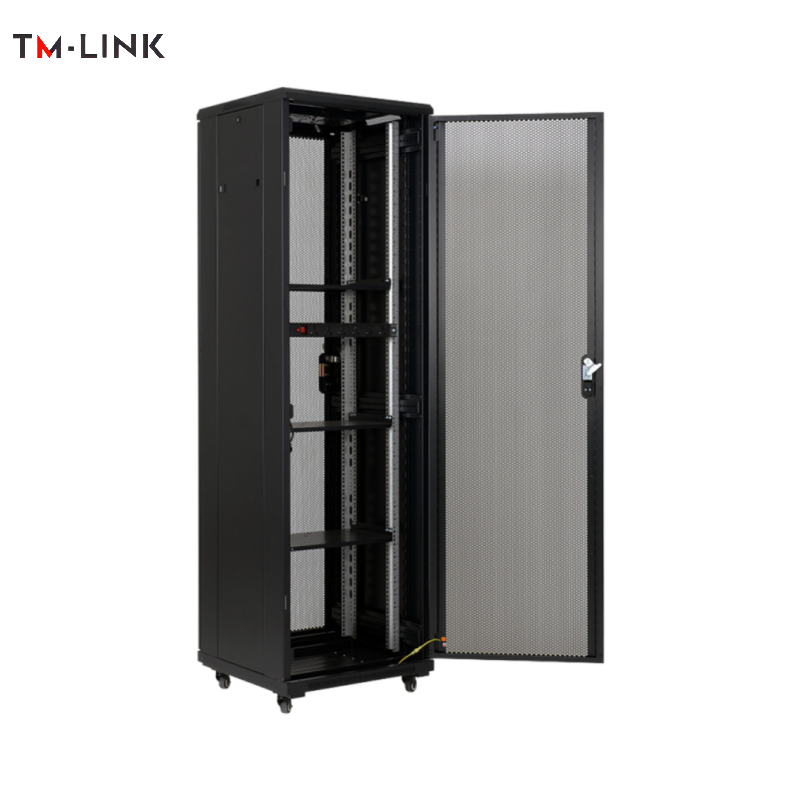

18-42U Power amplifier network cabinet

18-42U Power Amplifier Network Cabinet

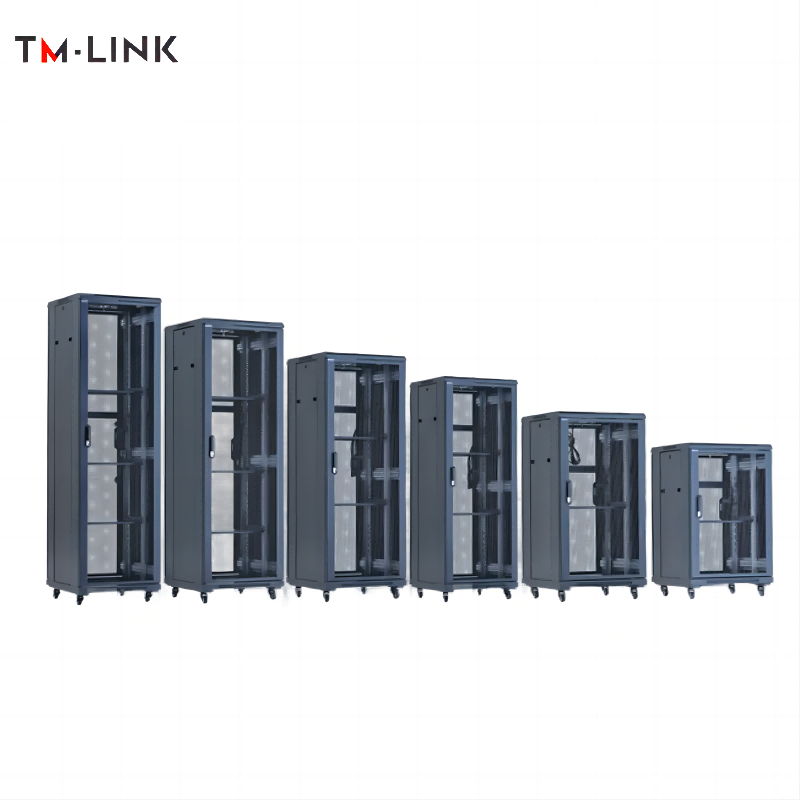

Options:18U/22U/27U/32U/37U/42U

Cabinet standard: comply with GB/T3047.2-92 standard, compatible with 19-inch international standard, metric standard and ETSI standard.

Cabinet material: vertical beam (square hole strip) fingerprint-coated aluminum zinc sheet, other SPCC cold rolled steel sheet.

Capacity standards ：42U 37U 32U 27U 22U 18U

Cabinet height：2055 1833 1610 1388 1166 988(mm)

Specification standards ：600x600 600x800 600x900 600x1000 600x1100 600x1200 (mm)

Material thickness：Vertical beam (square hole strip) =2.0mm, cross beam =1.2mm, other =1.0mm

Bearing: rated static load of 1000kg

Ventilation rate of cabinet door：≥80%

levels of protection ：IP20

Surface treatment: degreasing, water washing, phosphorization, spraying.
