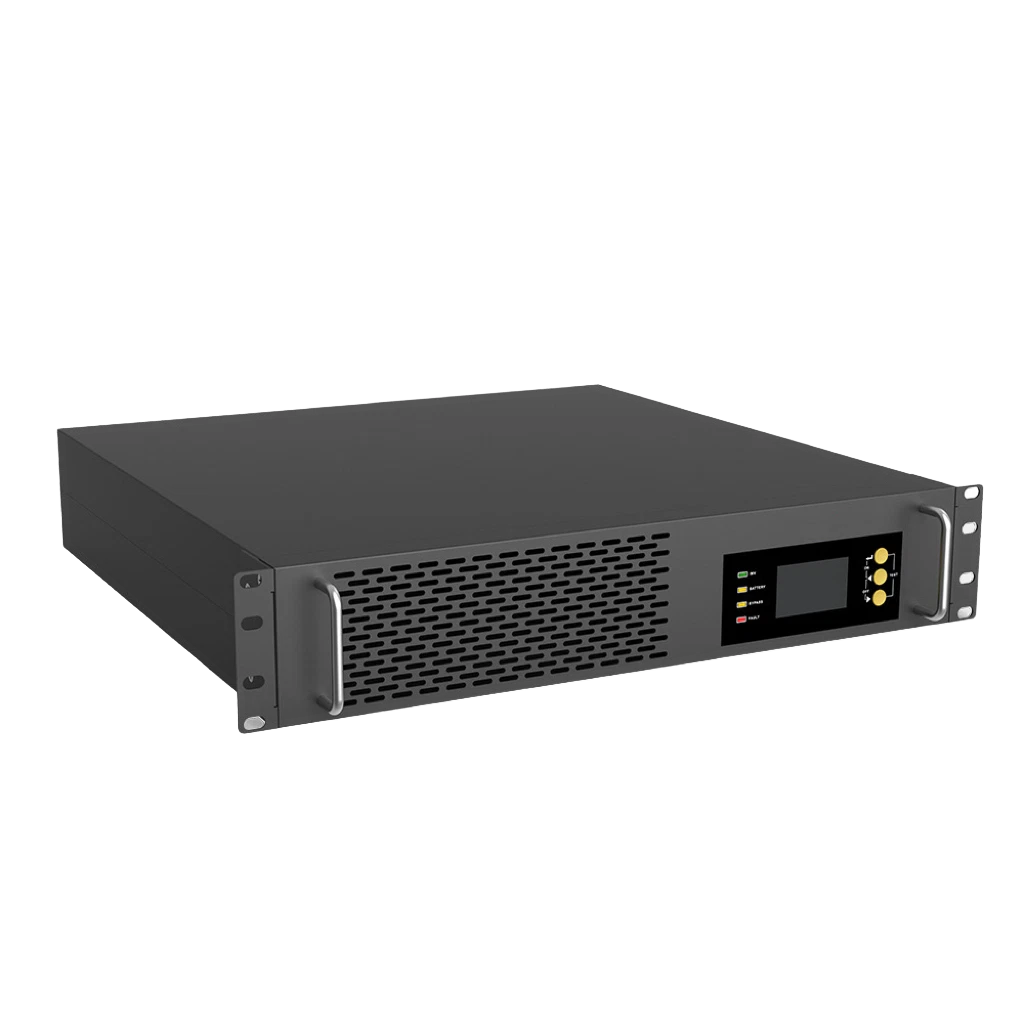

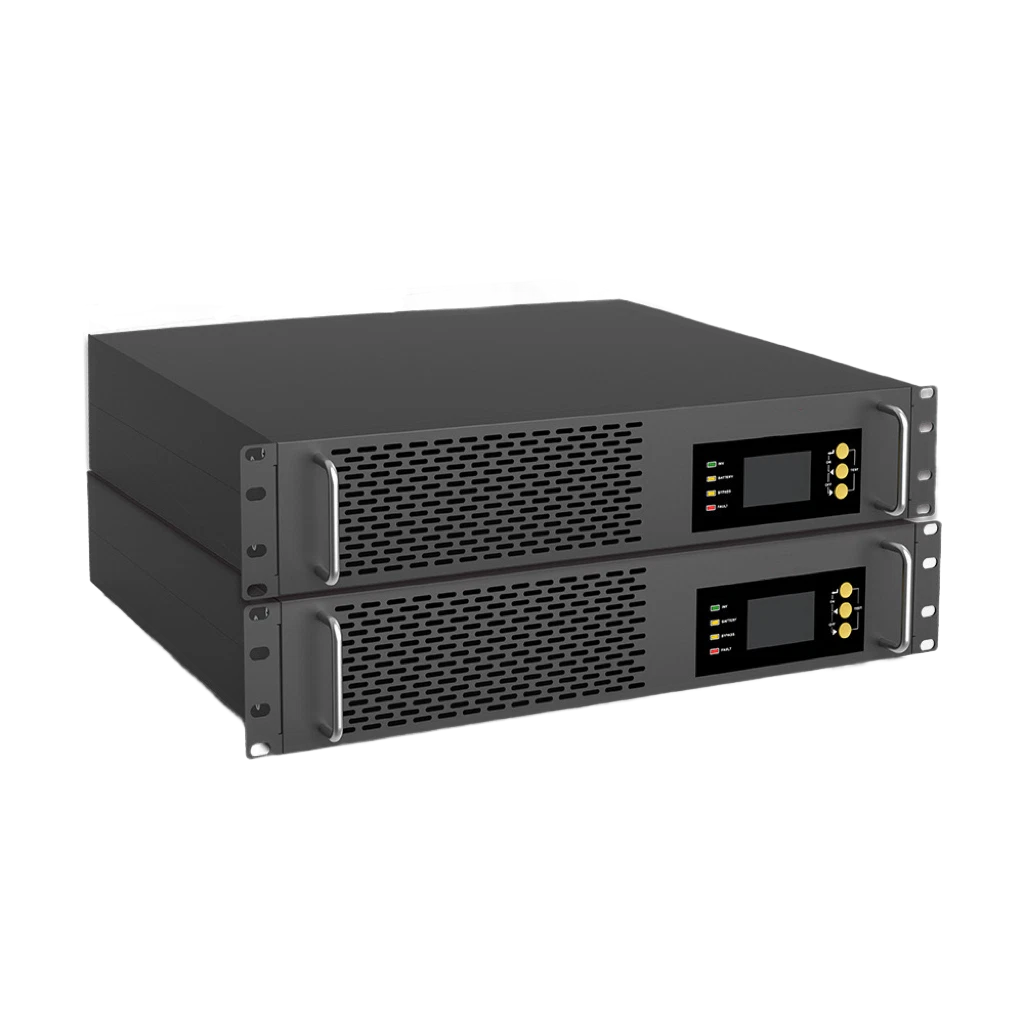

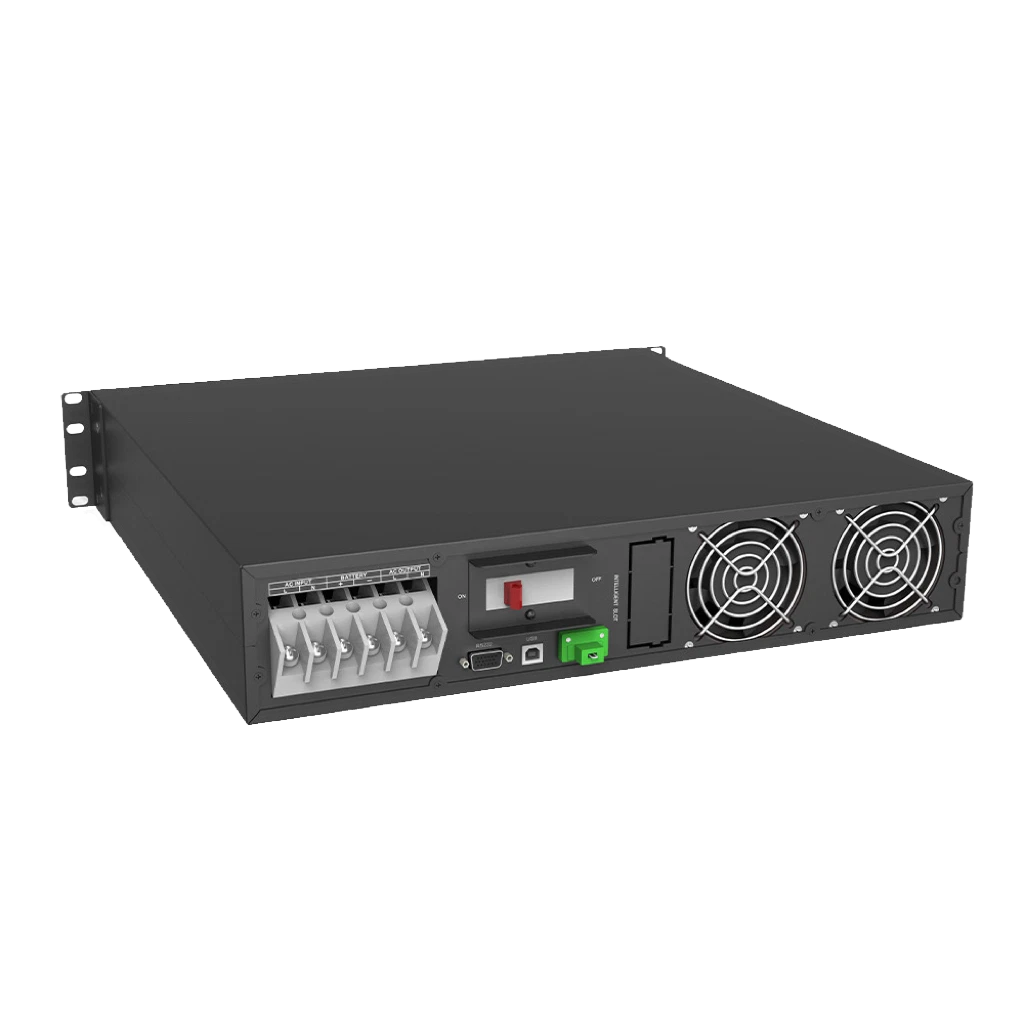

Rack type UPS
Rack type UPS
Product features
■Small volume and higher power density
■The online conversion efficiency is up to 95.5%
■The maximum charging current is 12A, and the 1-12A step is 1A.Can set
■Battery: 16 / 18 / 20.Can set
■Is input voltage (110VAC-300AC), wider frequency (44 HZ-56 HZ)
■Output of 208 Vac / 220 Vac / 230 Vac / 240 Vac.Can set
■Output power factor is 1.0/0.9/0.8.Optional
■Municipal electric rectification / power factor correction: using untless PFC + synchronous rectification technology
■ Output accuracy+1%
■Standard RS232 communication interface enables multifunctional and multi-purpose monitoring operation through the computer window, and SNMP card (optional) can be installed to realize UPS remote monitoring function.
Application scenarios
Office computer: post office communication, railway, petroleum, chemical industry and other industries office computer.
Business / banking: office equipment for education, business, banking, etc.
Servers: network room server, precision instruments and equipment, etc.
Product protection
Anti-short circuit--smart chip
Prevent power failure--the power failure does not restart
Voltage instability--easy voltage stabilization function
Overload--automatic protection equipment
Electronic jamming--to easily solve the jamming
Prevent surge--thunderstorm days
Overcharge protection--guarantee battery durability
Equipment protection--Precision instruments are also protected
Solve 9 major power supply problems
1. electronic interference
2. frequency fluctuation
3. overvoltage
4. harmonic distortion
5. City power interruption
6. transition
7. undervoltage
8. Lightning waves
9. Voltage subsidence
8 Heavy highlights
1. The 1.0-ms switching time
2. A wider input range
3. intelligent monitoring
4. Flexible and easy to expand
5. Green energy saving
6. LCD face-plate
7. Adapt to bad conditions
8. Stable pressure output

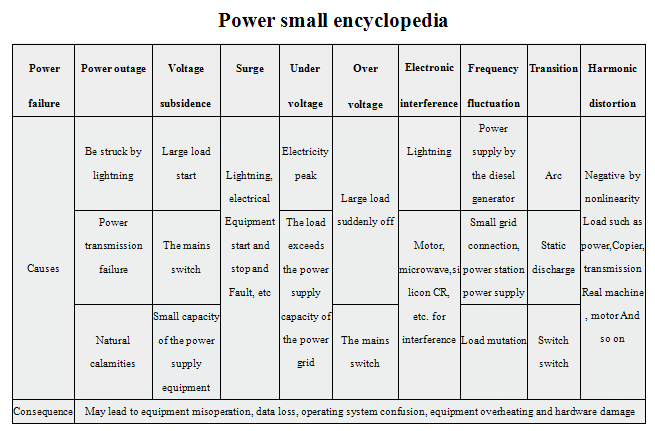

Power small encyclopedia
Power failure | Power outage | Voltage subsidence | Surge | Under voltage | Over voltage | Electronic interference | Frequency fluctuation | Transition | Harmonic distortion |
Causes |
Be struck by lightning |
Large load start |
Lightning, electrical Equipment start and stop and Fault, etc |
Electricity peak |
Large load suddenly off |
Lightning | Power supply by the diesel generator |
Arc |
Negative by nonlinearity Load such as power,Copier, transmission Real machine , motor And so on |
Power transmission failure |
The mains switch | The load exceeds the power supply capacity of the power grid |
Motor, microwave,silicon CR, etc. for interference | Small grid connection, power station power supply |
Static discharge | ||||
Natural calamities | Small capacity of the power supply equipment |
The mains switch |
Load mutation |
Switch switch | |||||
Consequence | May lead to equipment misoperation, data loss, operating system confusion, equipment overheating and hardware damage | ||||||||

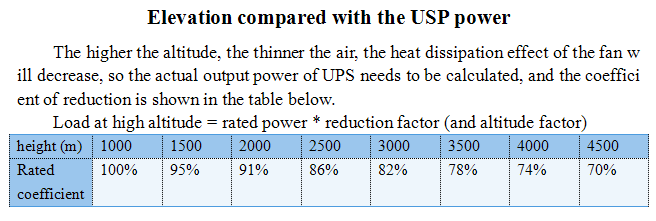

Elevation compared with the USP power
The higher the altitude, the thinner the air, the heat dissipation effect of the fan will decrease, so the actual output power of UPS needs to be calculated, and the coefficient of reduction is shown in the table below.
Load at high altitude = rated power * reduction factor (and altitude factor)
height (m) | 1000 | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 | 4500 |
Rated coefficient | 100% | 95% | 91% | 86% | 82% | 78% | 74% | 70% |
Technical parameter table
Model | H1KR | H1KRS | H2KR | H2KRS | H3KR | H3KRS | H6KR | H6KRS | H10KR | H10KRS | ||
Capacity | Rated capacity | 1KVA/1KW | 2KVA/2KW | 3KVA/3KW | 6KVA/6KW | 10KVA/10KW | ||||||
Input | Enter the system | L+N+PE | ||||||||||
Rated input voltage | 208/220/230/240VAC | |||||||||||
voltage range | 110~300VAC,110~176VAC、280~300VAC Power limit | |||||||||||
Frequency range | 50/60±6Hz(give tacit consent to),±10Hz(Available) | |||||||||||
Input power factor | ≥0.99 | |||||||||||
Enter the total harmonic | ≤49%Linear load | |||||||||||
Output | Output system | L+N+PE | ||||||||||
Output voltage | 208/220/230/240VAC | |||||||||||
Output accuracy | ±1% | |||||||||||
Output frequency | Online mode: follow the mains frequency, battery mode: 50 / 60Hz ± 0.1% | |||||||||||
Output harmonic distortion | ≤29% Linear load；≤4% Nonlinear loading(PF=0.7) | |||||||||||
Output power factor | 1 | |||||||||||
Overload capacity | UP mode: 30min@102%~1109%Load 10min@110%~130%Load 30s@1309%~150%Load 200ms@150%Load | Battery mode: 1min@1029%~1096%Load 10s@110%~130%Load 3s@1309%~150%Load 200ms@>1509%Load | ||||||||||
Output form | All thousand / national standard / European standard seat, etc | Terminal platform | ||||||||||
Change time | Used to battery | 0ms | ||||||||||
Inverse turn bypass |
