Patch Panel With Colonge-Type Modules

VDF-20 Patch Panel With Colonge-Type Modules

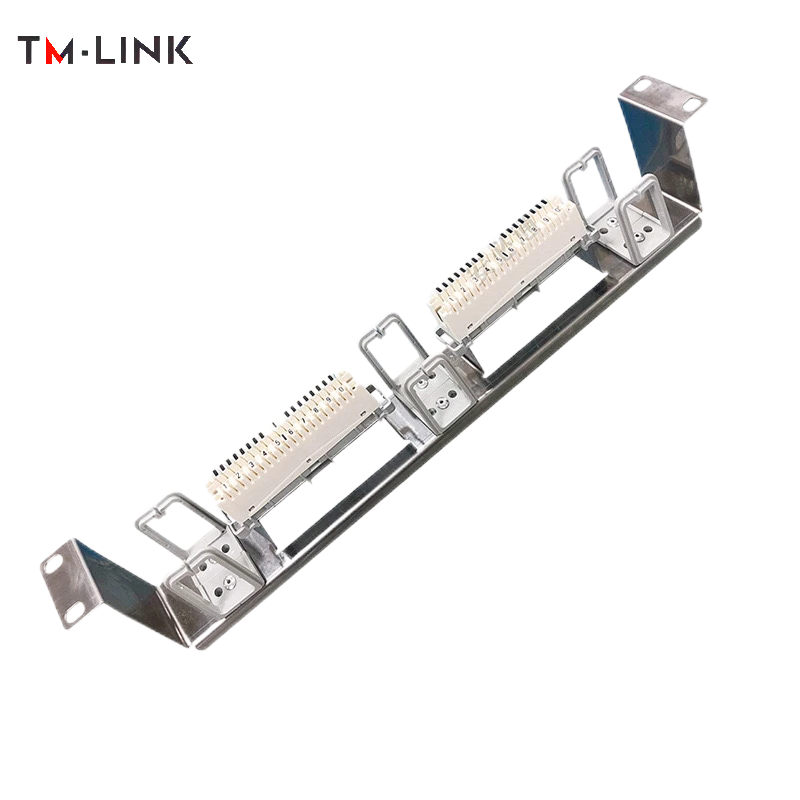

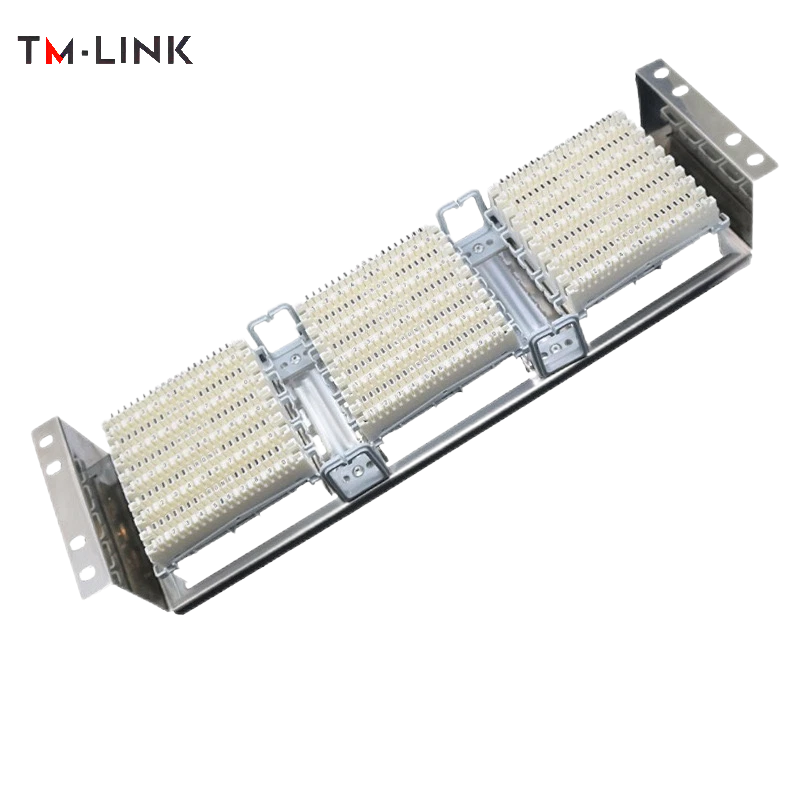

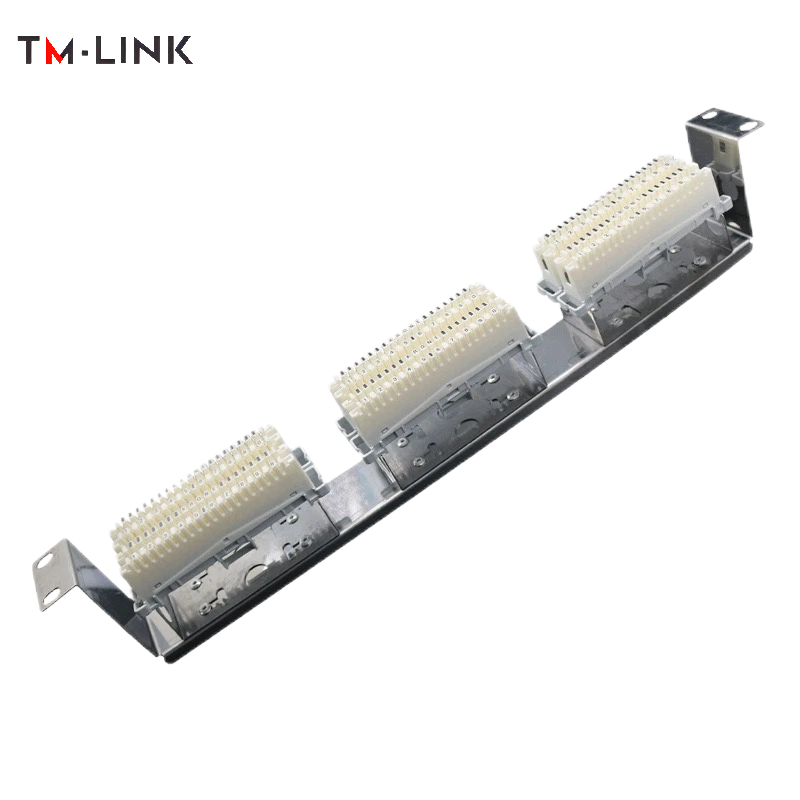

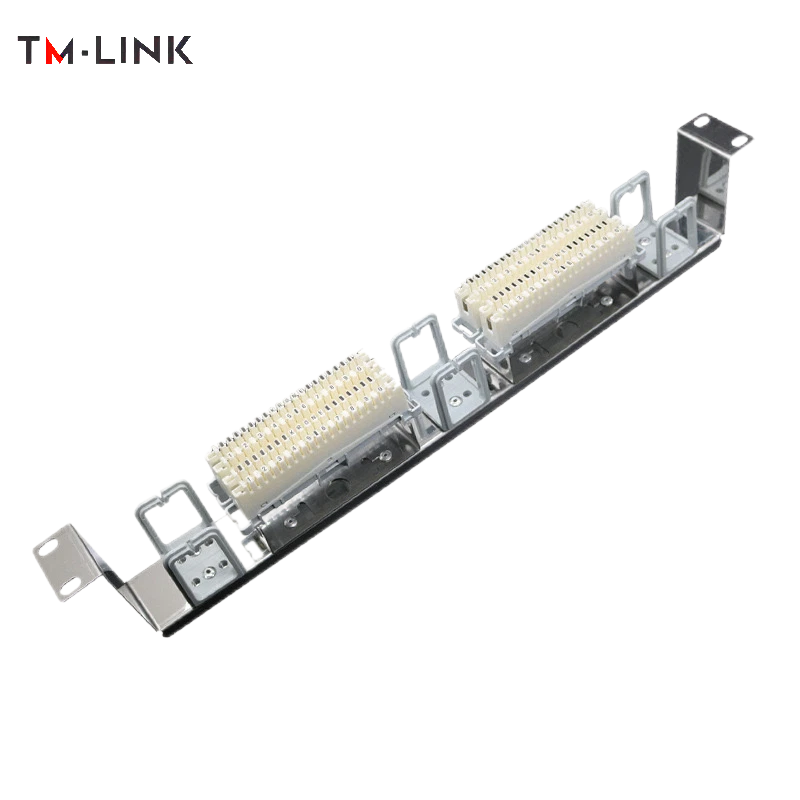

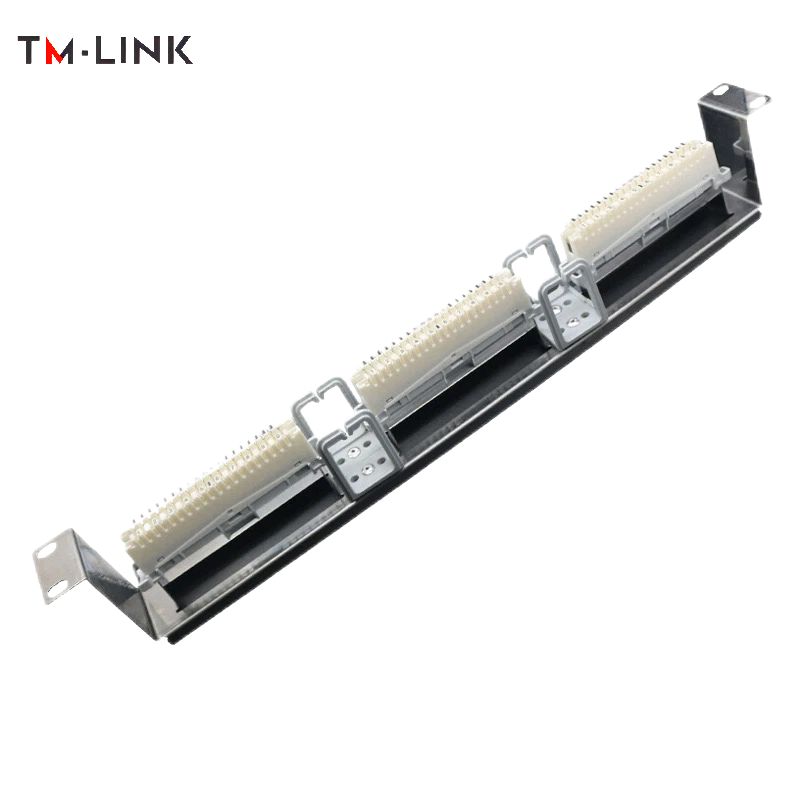

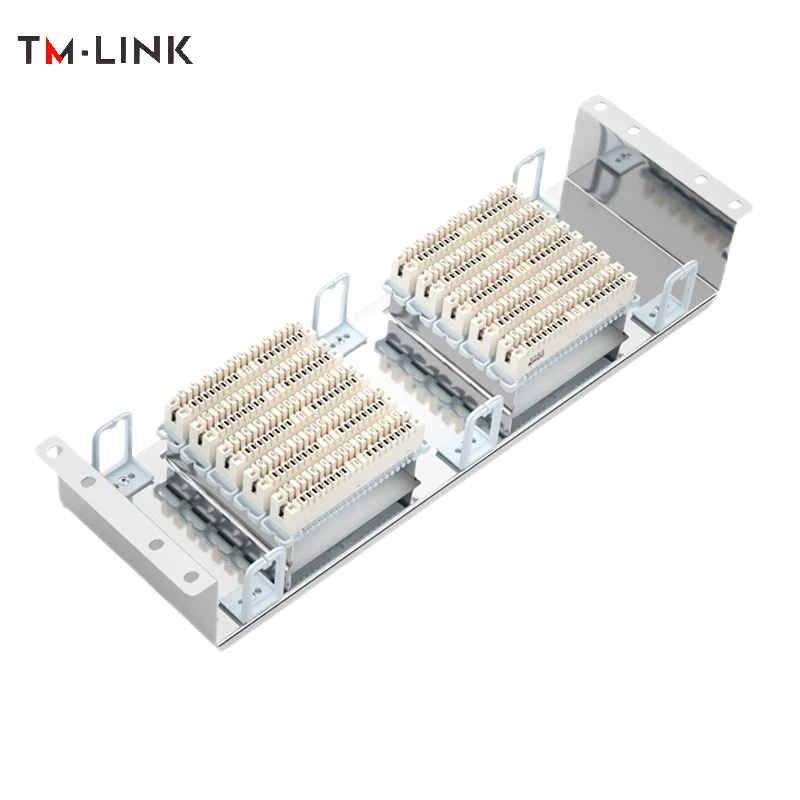

19-Inch VDF Audio Patch Panel(With Cologne-Type Module),20-150 Pairs

Brand：TM-LINK	Product name：VDF Audio Patch Panel
Module number：10 Cologne modules	Number of ports：20-150 Pairs
Application temperature: 5℃ ~40℃	Ambient humidity: 10%~85%(+35℃)
Storage temperature: -40~70℃	Insulation resistance：≥1000MΩ
Specification: Standard 19-inch cabinet	Pull-off force: 25N
Electrical resistance strength: can withstand 45Hz~60Hz sine wave, the effective value of 1000V AC voltage, lasting 1 minute should be no breakdown and non-arc phenomenon.
All sizes: 30 / 40 / 60 VDF (width 485mm height 44mm deep 75mm) 100 pairs / 150 pairs of VDF (wide 485mm height 130mm deep 75mm)
Contact resistance: After the contact resistance between the terminals is 7m Ω W for 200 times, the contact resistance value should be 3m Ω W. End contact resistance: 3m Ω; after wire connection test, the contact resistance increases by 2 MW.
Applicable cable: core wire diameter is 0.4mm~0.6mm		Plug and pull times: not less than 1000 times
