Network server cabinet

Network server cabinet

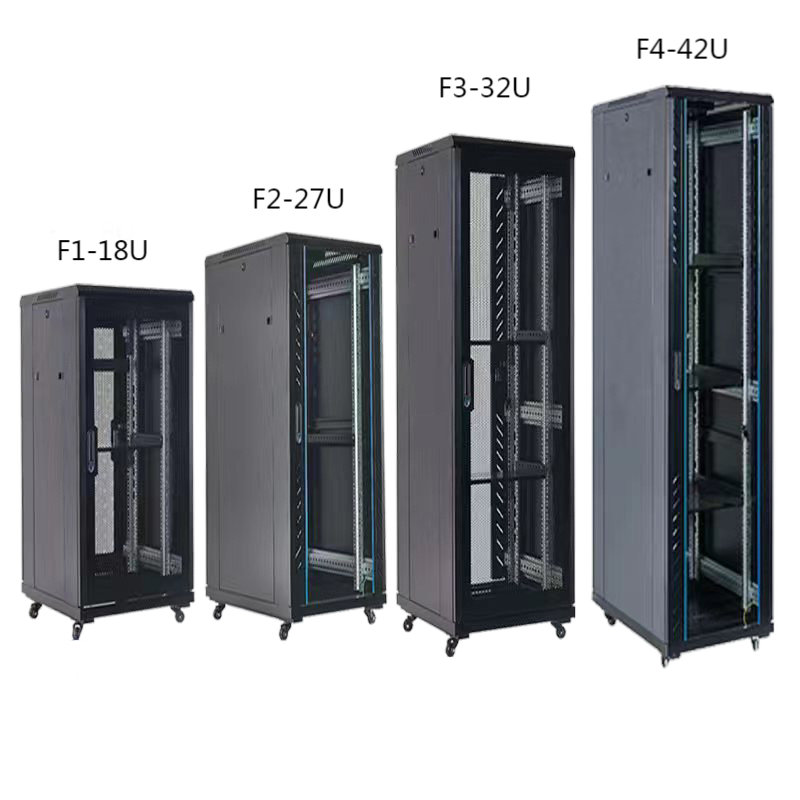

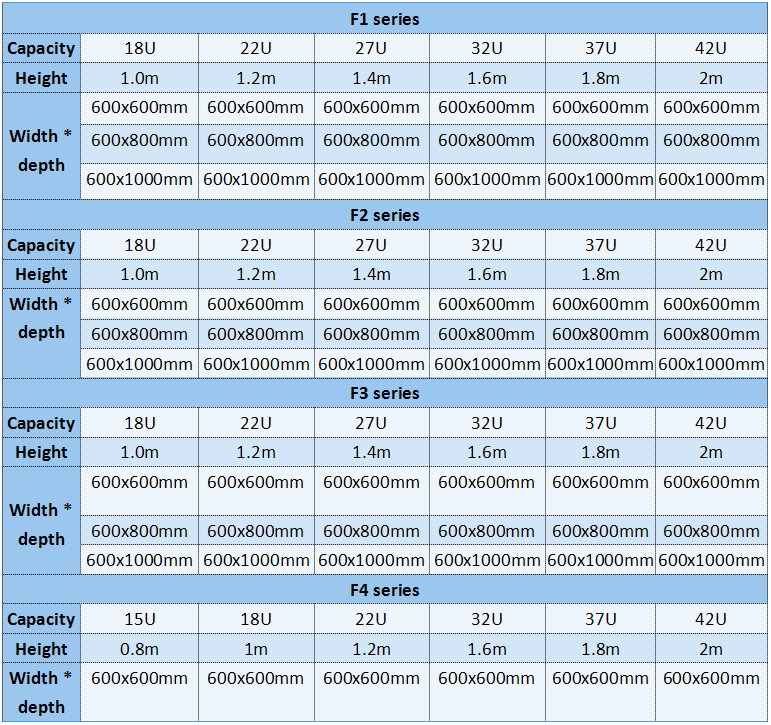

F1 series
Capacity	18U	22U	27U	32U	37U	42U
Height	1.0m	1.2m	1.4m	1.6m	1.8m	2m
*Width depth**	600x600mm	600x600mm	600x600mm	600x600mm	600x600mm	600x600mm
	600x800mm	600x800mm	600x800mm	600x800mm	600x800mm	600x800mm
	600x1000mm	600x1000mm	600x1000mm	600x1000mm	600x1000mm	600x1000mm
F2 series
Capacity	18U	22U	27U	32U	37U	42U
Height	1.0m	1.2m	1.4m	1.6m	1.8m	2m
*Width depth**	600x600mm	600x600mm	600x600mm	600x600mm	600x600mm	600x600mm
	600x800mm	600x800mm	600x800mm	600x800mm	600x800mm	600x800mm
	600x1000mm	600x1000mm	600x1000mm	600x1000mm	600x1000mm	600x1000mm
F3 series
Capacity	18U	22U	27U	32U	37U	42U
Height	1.0m	1.2m	1.4m	1.6m	1.8m	2m
*Width depth**	600x600mm	600x600mm	600x600mm	600x600mm	600x600mm	600x600mm
	600x800mm	600x800mm	600x800mm	600x800mm	600x800mm	600x800mm
	600x1000mm	600x1000mm	600x1000mm	600x1000mm	600x1000mm	600x1000mm
F4 series
Capacity	15U	18U	22U	32U	37U	42U
Height	0.8m	1m	1.2m	1.6m	1.8m	2m
*Width depth**	600x600mm	600x600mm	600x600mm	600x600mm	600x600mm	600x600mm

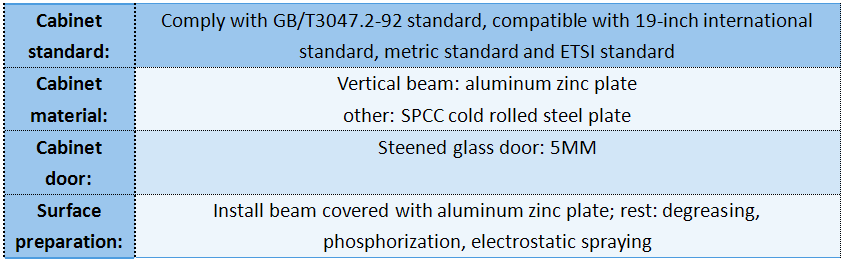

Cabinet standard:	Comply with GB/T3047.2-92 standard, compatible with 19-inch international standard, metric standard and ETSI standard
Cabinet material:	Vertical beam: aluminum zinc plate other: SPCC cold rolled steel plate
Cabinet door:	Steened glass door: 5MM
Surface preparation:	Install beam covered with aluminum zinc plate; rest: degreasing, phosphorization, electrostatic spraying

Square hole strip aluminum zinc sheet: anti-rust and moisture-proof, aluminum zinc sheet material column and U degree silk screen, can be adjusted before and after according to the depth of the equipment if necessary.

Adjustable tray: the height of the tray can be adjusted up and down, km screws are fixed, simple installation, strong and durable.

Strong universal wheel: super load-bearing, 360 direction movement, labor-saving, smooth
Heat dissipation fan: the top 2 / 4 fan set, equipped with quick power plug

Bottom inlet hole: the bottom inlet hole can be opened and closed according to the demand.
