Mesh Door Free Standing Network Cabinets

Standard:

Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41491;PART1,DIN41494;PART7,GB/3047.2-92 standard

ADVANTAGES

Feature:

1. Modern stylish appearance and elegant exterior.

2. Firm steel construction and precise measurement for 19” standard.

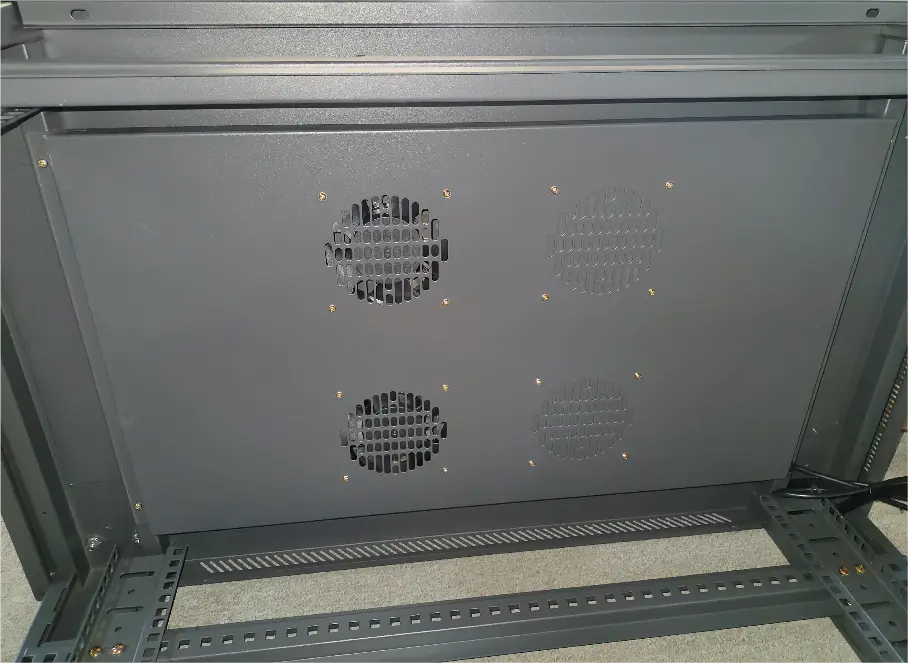

3. Each cabinet fit out with fans in the top.4 fans available for 600mm depth cabinet,6 fans for 800mm depth and 8 fans for 1000mm depth cabinet.

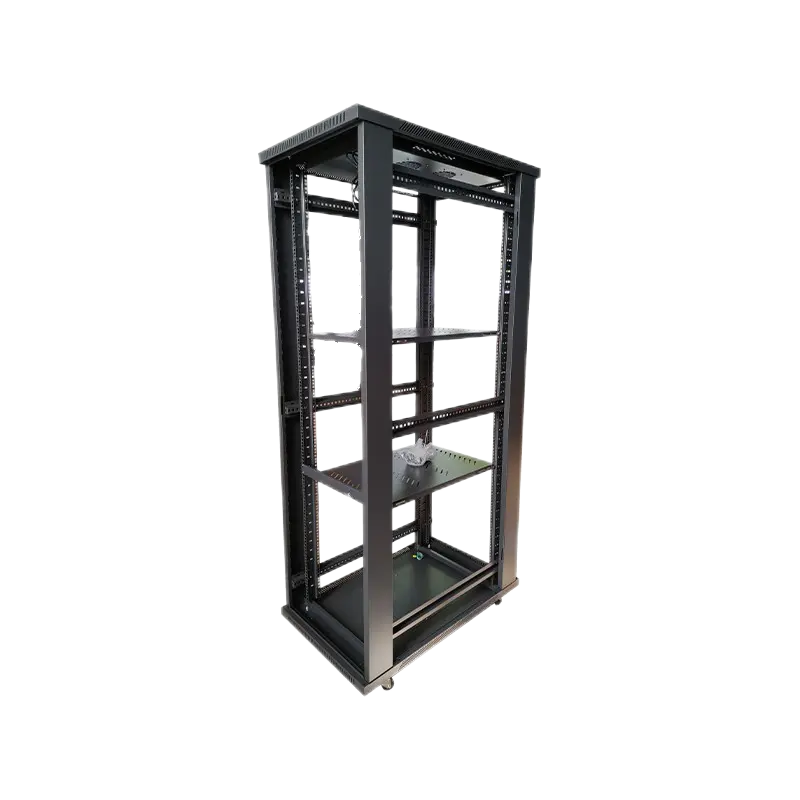

4.19” standard mounting post, the mounting depth is adjustable.

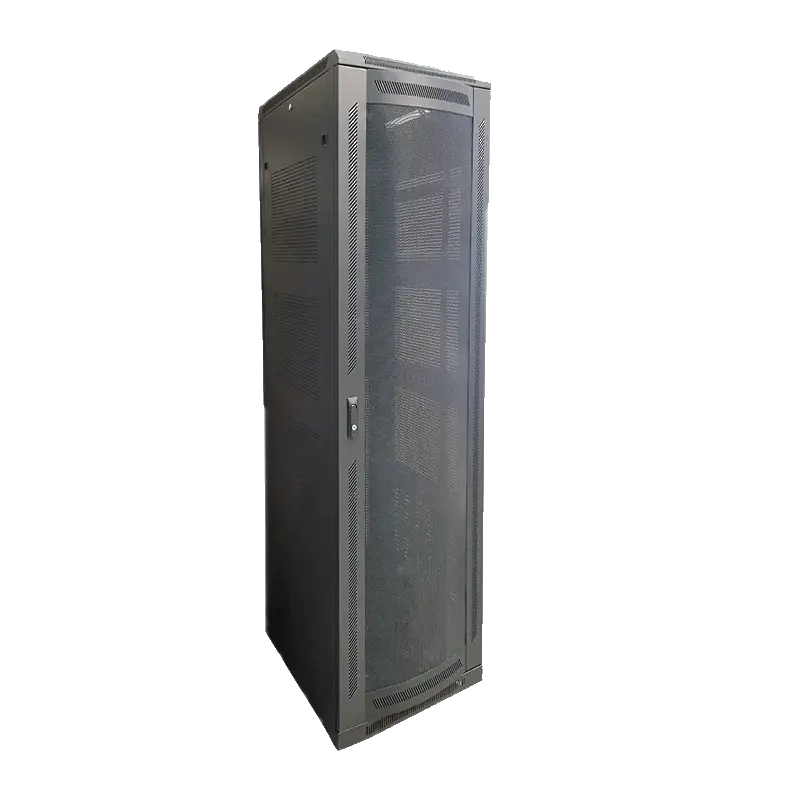

5. Mesh front door or curved perforated front door design for airflow and heat dissipation.

6. Two side panels using quickly release sliding latches, easy to knockdown.

7. Also each side panel with lock and ventilation for security and heat-cooling.

8. High perforated Rear door adopt double-section design,3 point lock system on your options.

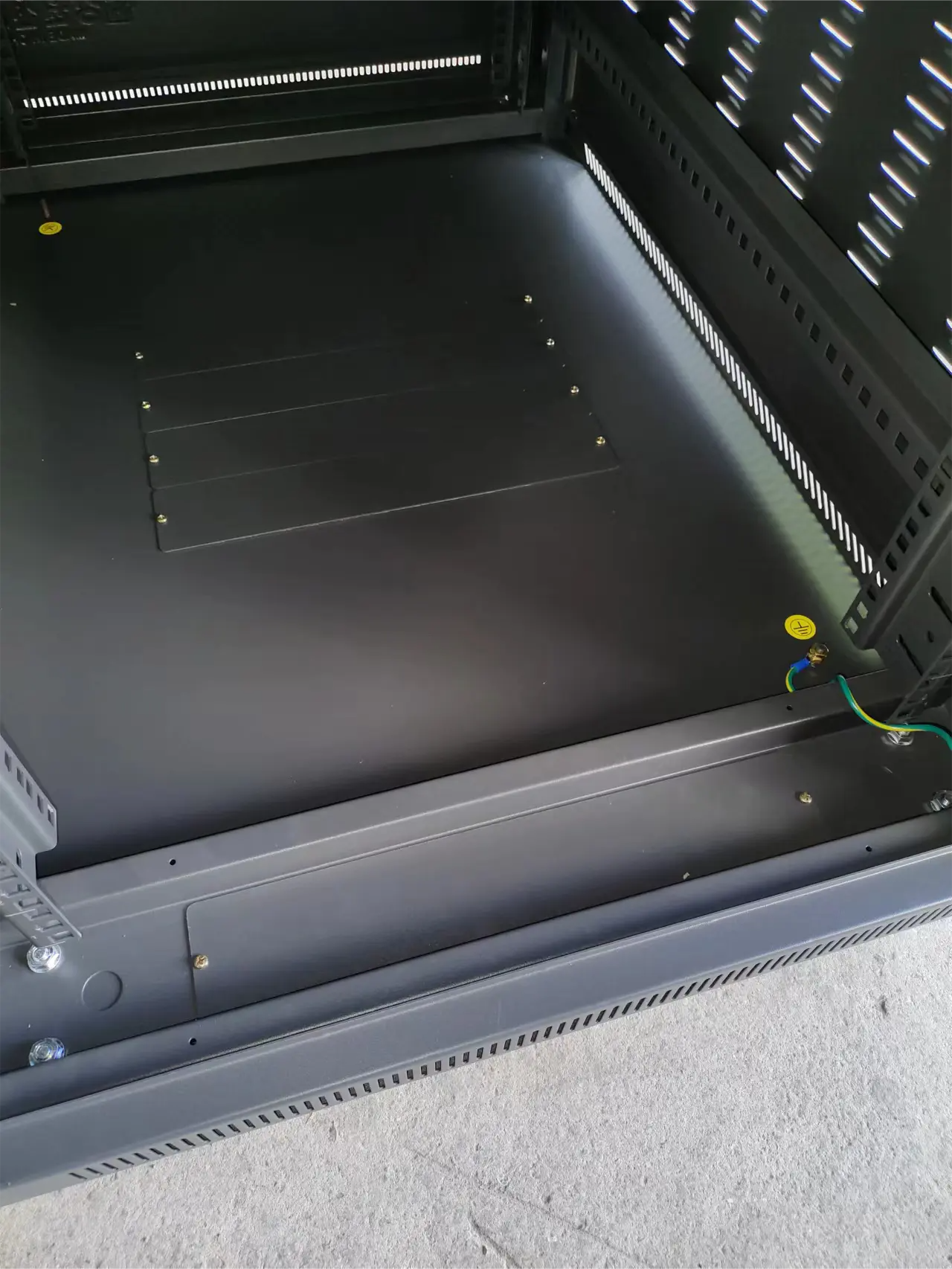

9. Large cable entry with rubber hoop protector in Base.

10. Adjustable feet and universal castors in the bottom.

11. Shelf, cable manager, PDU and other accessories available on your options.

12. Available in heights ranging from 16U to 46U with three standard depth of 600mm,800mm,1000mm.

DEVICE PARAMETERS

Main material:

Main Specification(mm):

Color:
