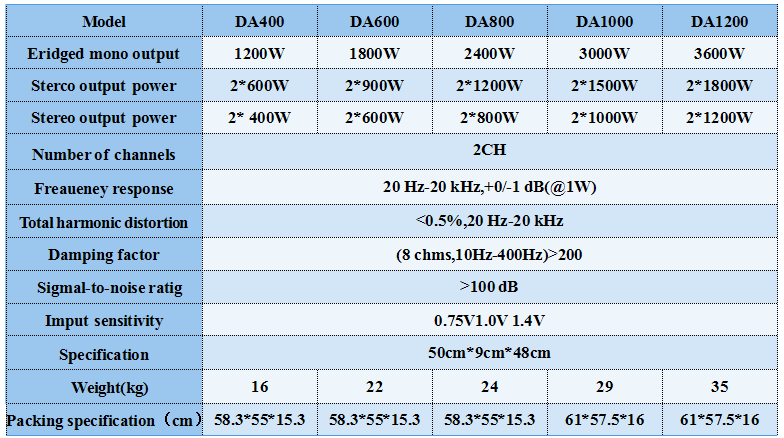

High-power Power Amplifier

Eridged mono output

1200W

1800W

2400W

3000W

3600W

Sterco output power

2*600W

2*900W

2*1200W

2*1500W

2*1800W

Stereo output power

2* 400W

2*600W

2*800W

2*1000W

2*1200W

Number of channels

2CH

Freaueney response

20 Hz-20 kHz,+0/-1 dB(@1W)

Total harmonic distortion

<0.5%,20 Hz-20 kHz

Damping factor

(8 chms,10Hz-400Hz)>200

Sigmal-to-noise ratig

>100 dB

Imput sensitivity

0.75V1.0V 1.4V

Specification

50cm*9cm*48cm

Weight(kg)

16

22

24

29

35

Packing specification（cm）

58.3*55*15.3

58.3*55*15.3

58.3*55*15.3

61*57.5*16

61*57.5*16

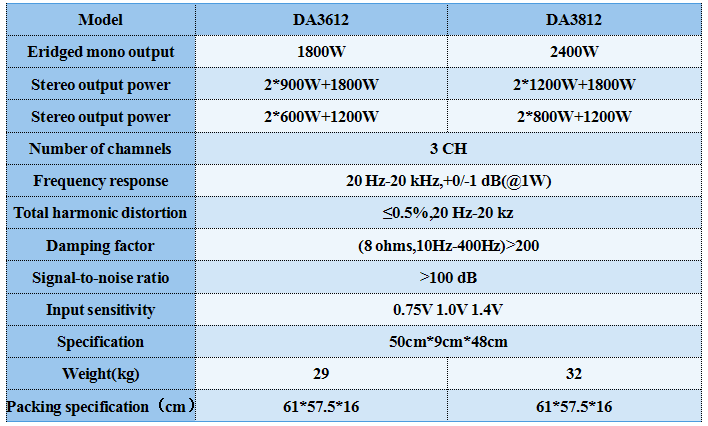

Eridged mono output

1800W

2400W

Stereo output power

2*900W+1800W

2*1200W+1800W

Stereo output power

2*600W+1200W

2*800W+1200W

Number of chamnels

3 CH

Frequency response

20 Hz-20 kHz,+0/-1 dB(@1W)

Total harmonic distortion

≤0.5%,20 Hz-20 kz

Damping factor

(8 ohms,10Hz-400Hz)>200

Signal-to-noise ratio

>100 dB

Input sensitivity

0.75V 1.0V 1.4V

Specification

50cm*9cm*48cm

Weight(kg)

29

32

Packing specification（cm）

61*57.5*16

61*57.5*16

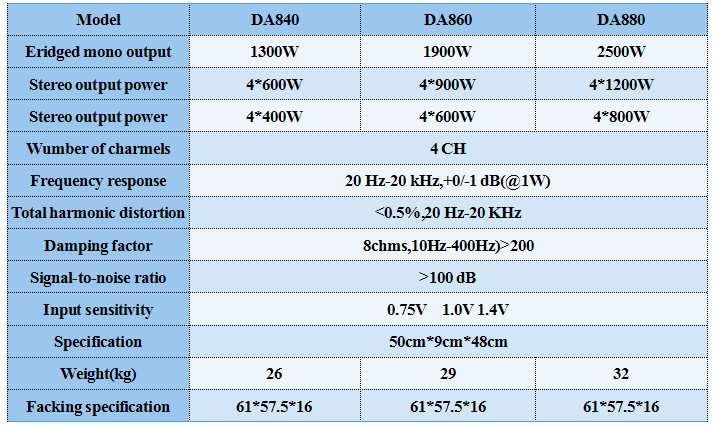

Eridged mono output

1300W

1900W

2500W

Stereo output power

4*600W

4*900W

4*1200W

Stereo output power

4*400W

4*600W

4*800W

Wumber of charmels

4 CH

Frequency response

20 Hz-20 kHz,+0/-1 dB(@1W)

Total harmonic distortion

<0.5%,20 Hz-20 KHz

Damping factor

8chms,10Hz-400Hz)>200

Signal-to-noise ratio

>100 dB

Input sensitivity

0.75V  1.0V 1.4V

Specification

50cm*9cm*48cm

Weight(kg)

26

29

32

Facking specification

61*57.5*16

61*57.5*16

61*57.5*16
