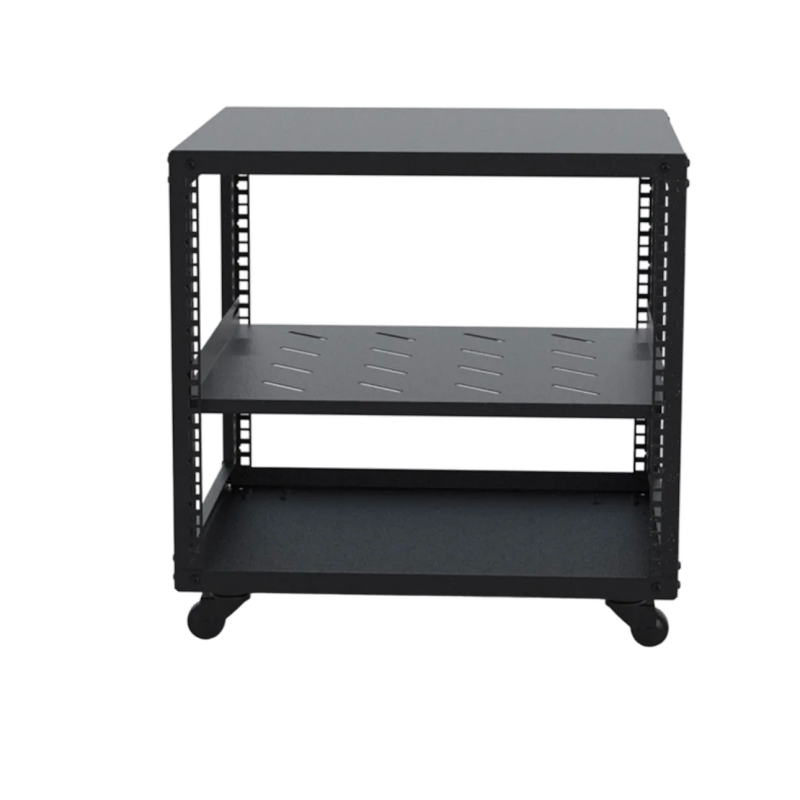

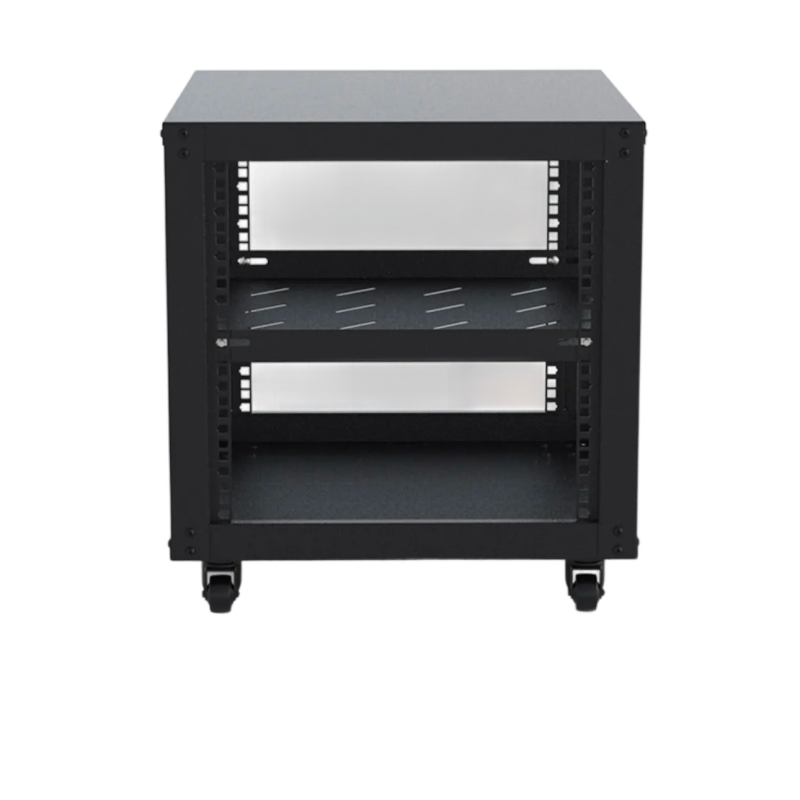

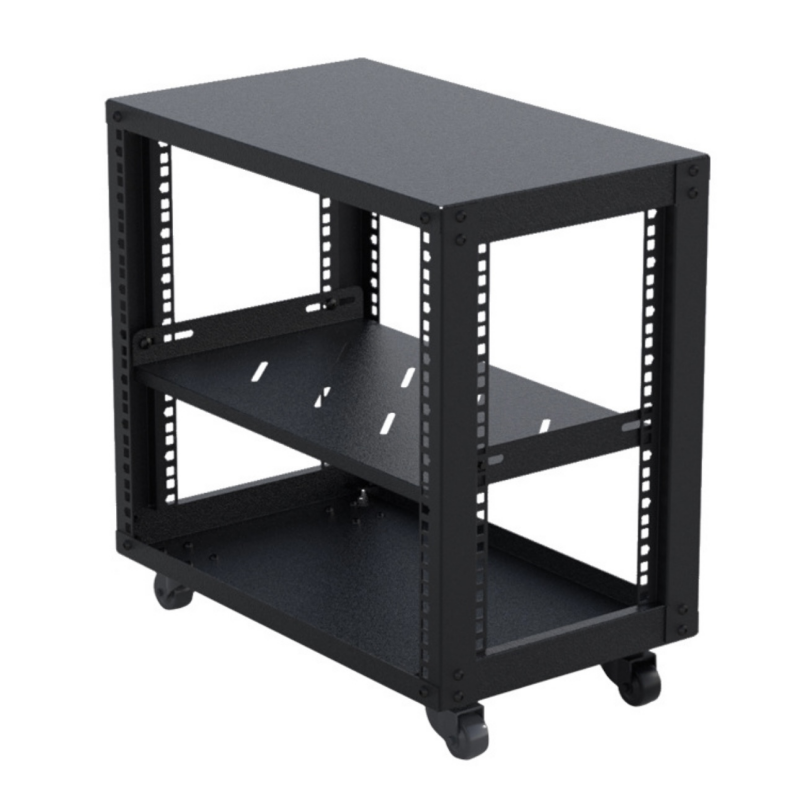

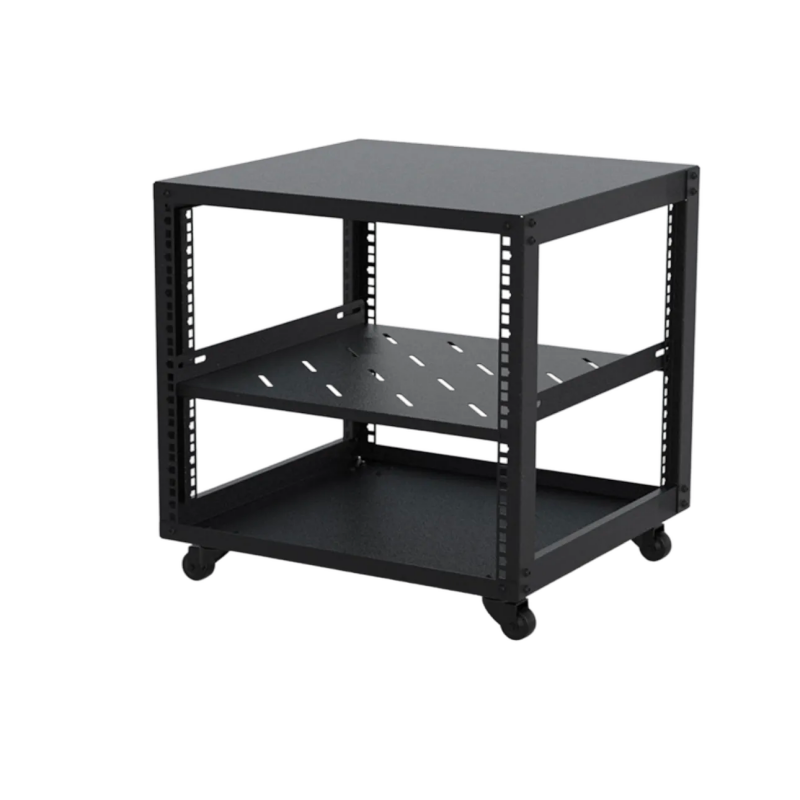

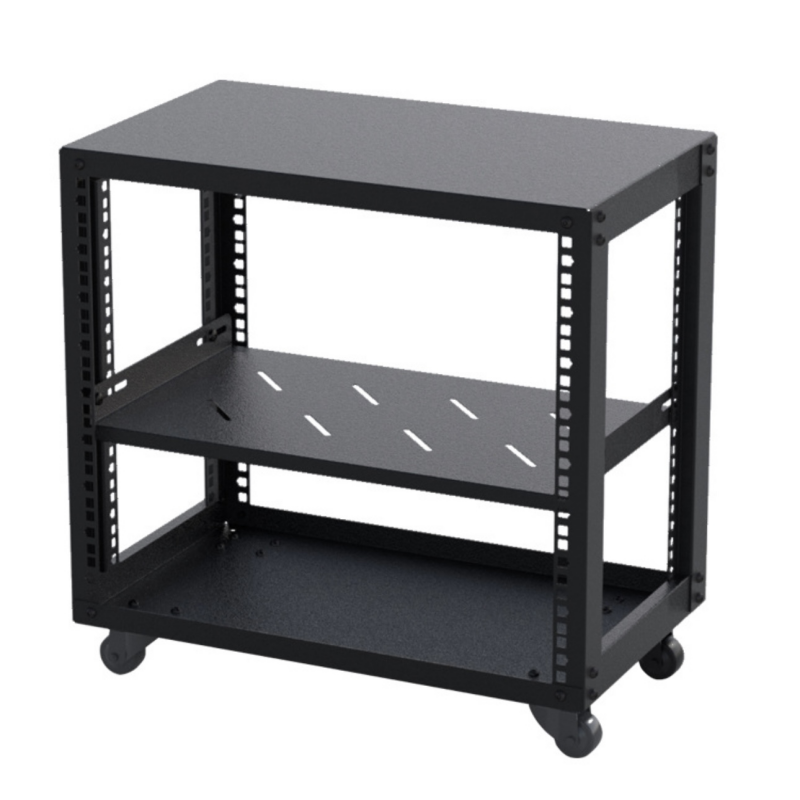

5-32U open type audio cabinet
5-32U open type audio cabinet
Parameter
Product name:open type audio cabinet
Color:Black
Material:Cold rolled steel plate
Options:5U~32U
Product process：Dull polish grilled paint
Use：Prevention and control of power amplifier, switches, servers, router equipment

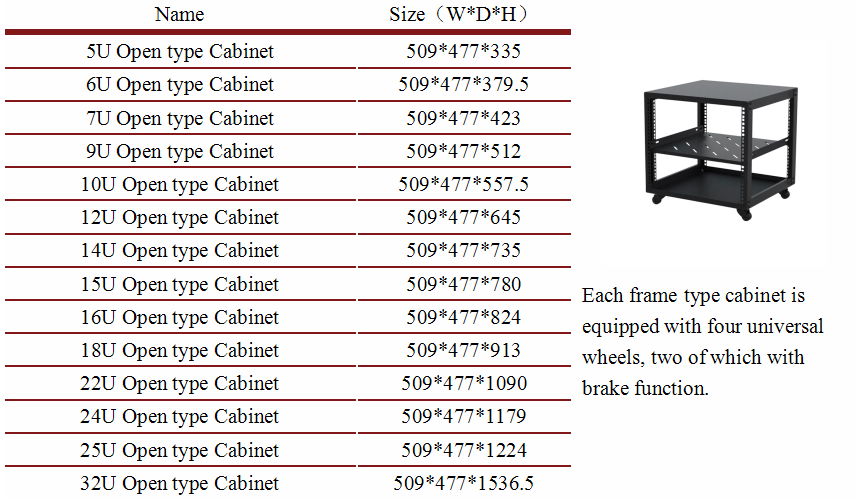

Name | Size（W*D*H） |
Each frame type cabinet is equipped with four universal wheels, two of which with brake function. |
5U Open type Cabinet | 509*477*335 | |
6U Open type Cabinet | 509*477*379.5 | |
7U Open type Cabinet | 509*477*423 | |
9U Open type Cabinet | 509*477*512 | |
10U Open type Cabinet | 509*477*557.5 | |
12U Open type Cabinet | 509*477*645 | |
14U Open type Cabinet | 509*477*735 | |
15U Open type Cabinet | 509*477*780 | |
16U Open type Cabinet | 509*477*824 | |
18U Open type Cabinet | 509*477*913 | |
22U Open type Cabinet | 509*477*1090 | |
24U Open type Cabinet | 509*477*1179 | |
25U Open type Cabinet | 509*477*1224 | |
32U Open type Cabinet | 509*477*1536.5 |
Installation method
1.Place the universal wheel and the bottom plate together with the hole.
2.Place the screws into the universal wheel hole of the bottom plate.
3.Put the nut on the bottom and secure it.
4.Insert 4 vertical supports into the top cover and bottom
5.Insert the screw into the hole and secure the nut inside.
6.Place the cover plate and insert into the screw. The nuts inside are fixed.
