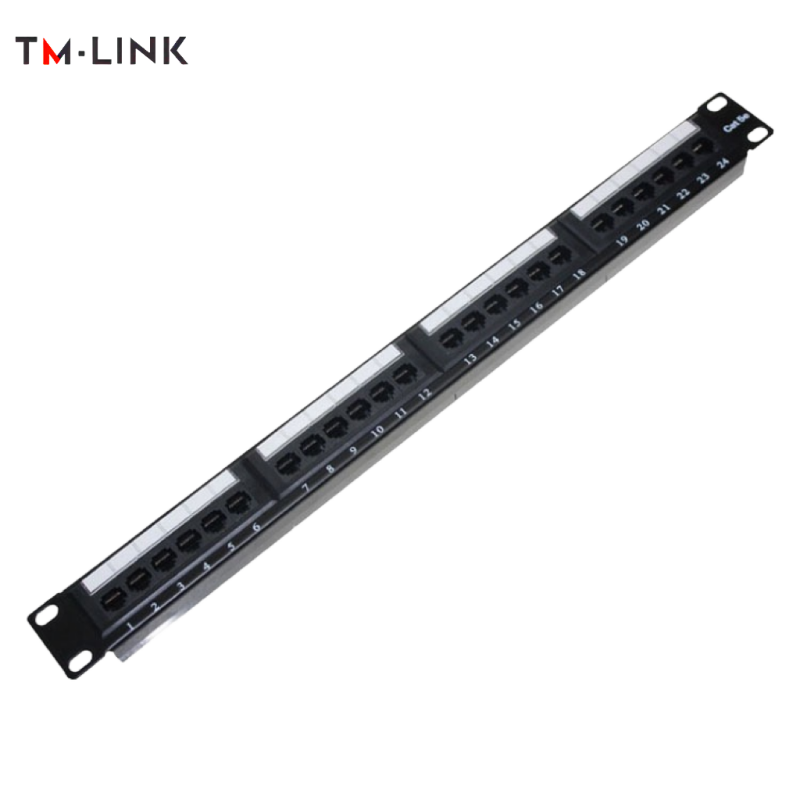

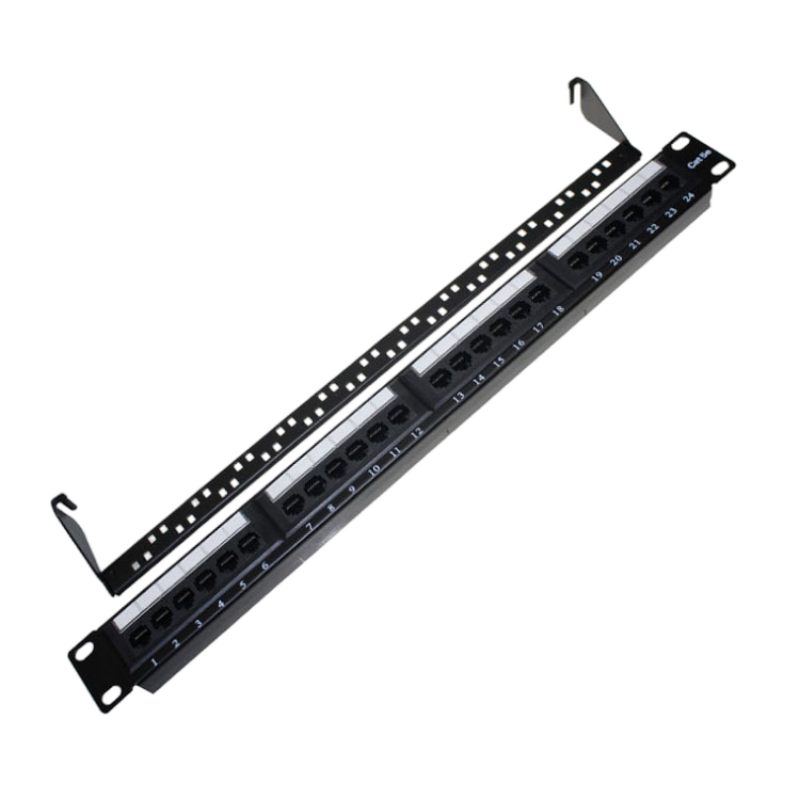

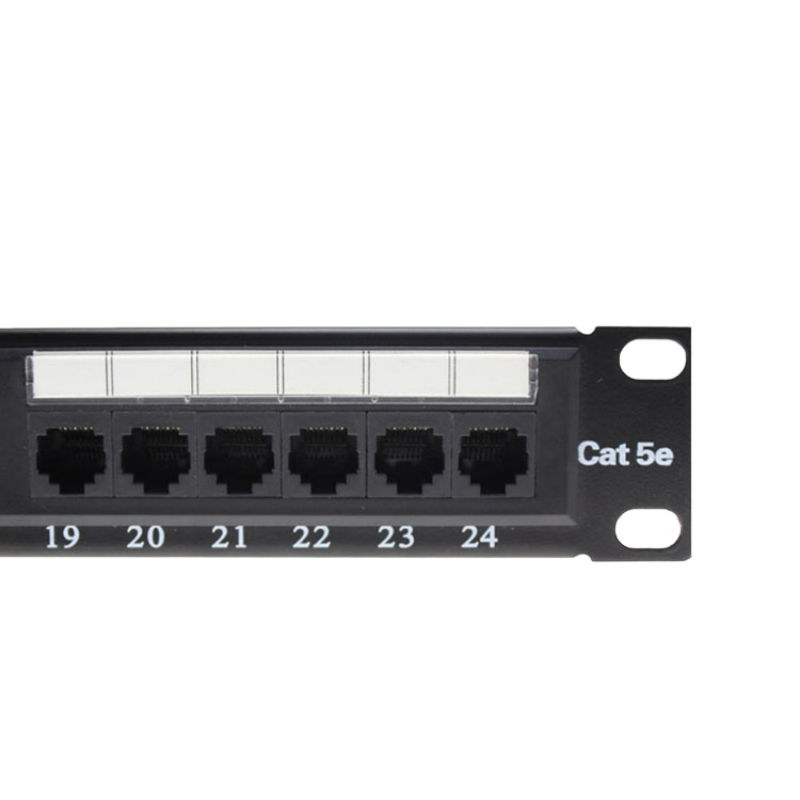

1 U 19” Cat.5e unsheilded patch panel 24-port

1U 19-Inch Cat.5e Unshielded Patch Panel 24-Port

◆Product name:Cat.5e patch panel
Product type: More than five categories of 24-port distribution frame, unshielded
Specification: 19 " installation size, modular design
Material: made of high-quality cold-rolled steel plate, phosphorus bronze and PC injection molding
Color: black and white
◆Main technical parameters

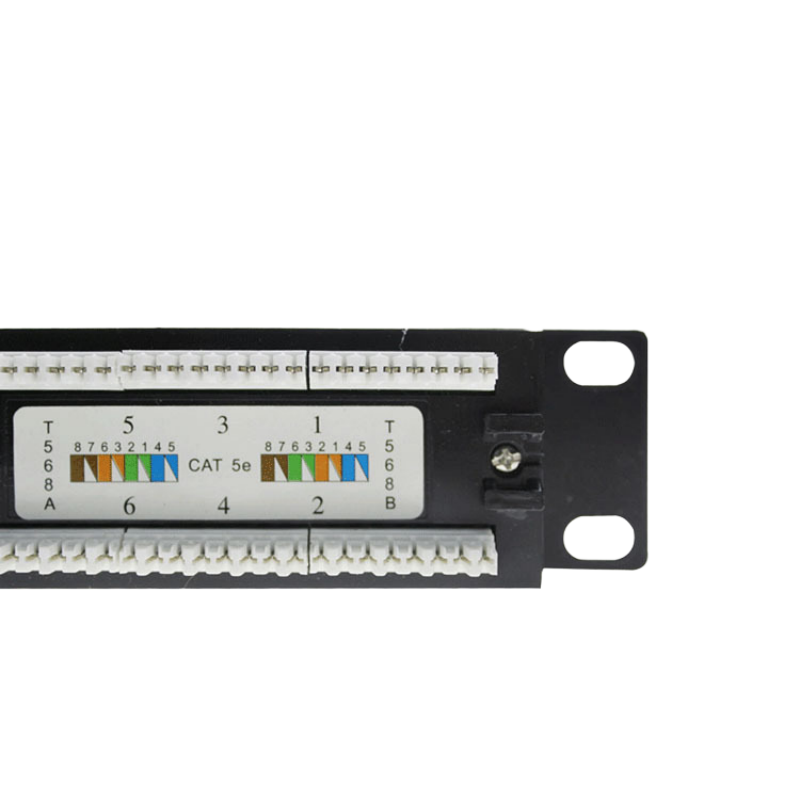

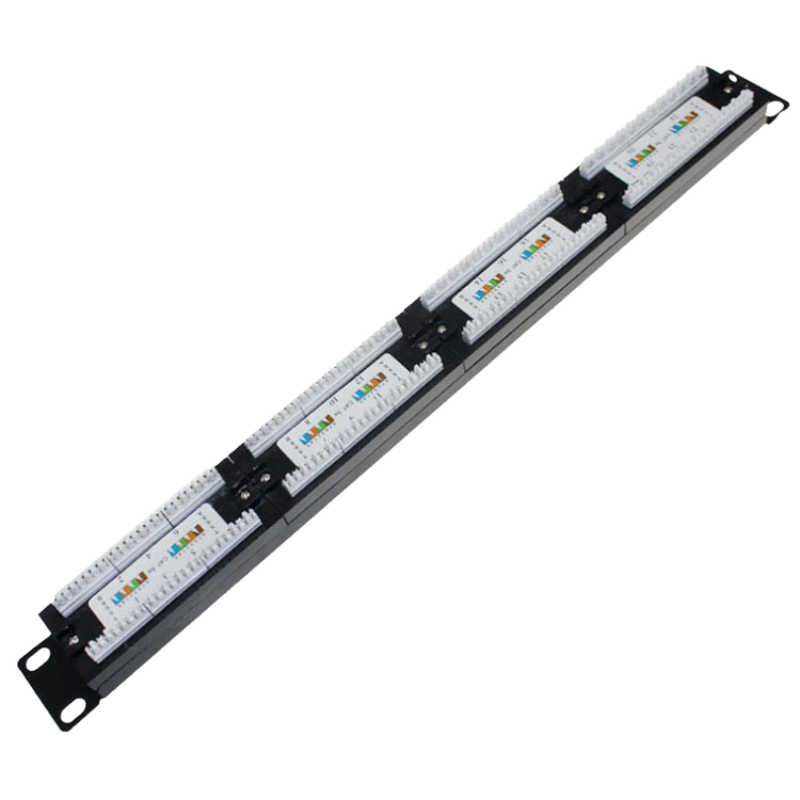

* IDC: Phosphorous bronze, nickel plated (20 ~ 50 ui LZh), applicable cable 22,24 and 26 AWG (0.64,0.5 and 0.4mm), life not less than 250 times.

* 8 Line pin: phosphorous bronze, gold-plated (20 ~ 50 ui LZh), plug and socket can be repeatedly inserted and pulled no less than 750 times
* Flame retardant: PPO + PC injection molding to meet the international standards
* Contact resistance: not greater than 2.5 mQ under normal atmospheric pressure (without body resistance)
* Insulation resistance: not less than 1000 MQ under normal atmospheric pressure
* Electrical resistance strength: DC 1000V (AC, 750V) no breakdown and flying arc within 1 minute
* Standard: Designed and manufactured per international standard ISO / IEC11801; TIA / EIA568
