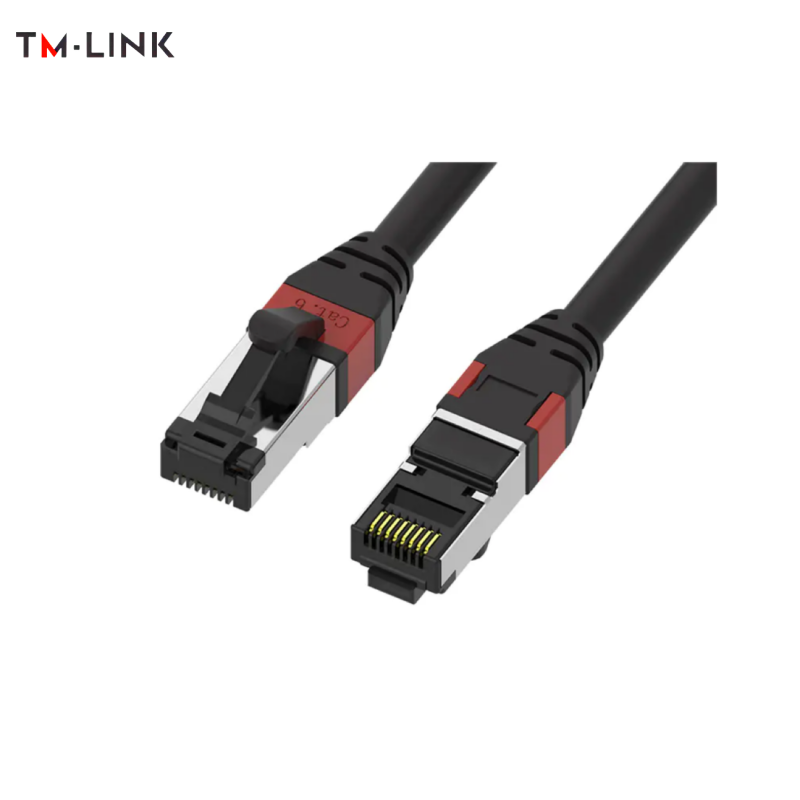

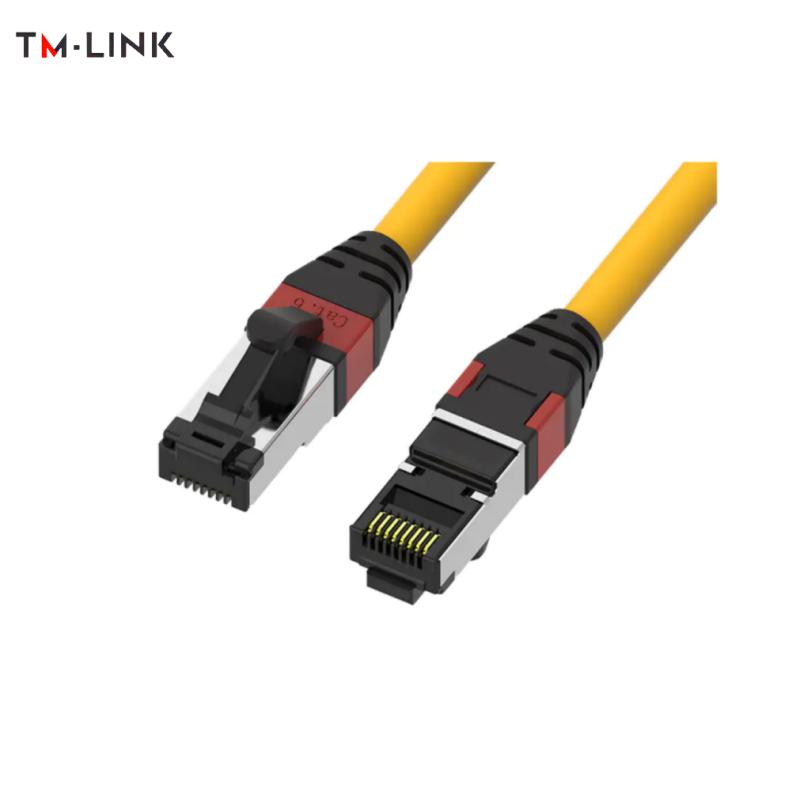

Unshielded 28AWG CAT.6 S-FTP ESG Patch Cord

Unshielded 28AWG Cat.6 S/FTP ESG Patch Cord

Cat.6 S/FTP 28AWG slim patch cord with different designed strain relief. Smaller diameter cords save more the space & cost. Smaller wire gauge offers flexibility for easier moves.

● Join us in Reducing Carbon Footprint by 35%

●Responding to climate change, we introduced ISO14064 & ISO14067 in 2022. We are committed to Reduce Carbon Footprint & Lower Greenhouse Gas Emissions for Environmental Protection.

●We will gradually integrate ESG into our production prcoesses and achieve the goal of ESG Sustainable Development.

● Protecting the Planet with Environmentally-Friendly Choices

●Climate Action & Reducing Carbon Emissions Substantially towards Long-term Climate Neutrality

● Let's work together to build a Sustainable Future with ESG Products.

● Follow ANSI/TIA-568.2-D & ISO/IEC 11801

● Save Space & High Density Compatible

● Cat.6A / Cat.6 / Cat.5E Available

● 32AWG / 30AWG/ 28AWG Available

● Bare Copper with More Stable Performance

● 50U" Gold Plating RJ45 Plugs with Patented Design

● Various Colors & Molding Available

● Mating Cycles: Up to 1200 Times

● Suitable 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

● Operation Temperature Range:-10~60 ℃

● 4PPoE / CE Certified & Comply with RoHS & REACH

Standards & Features

Patch Cords Meet the Following Standards:

● ISO/IEC 11801:2011

● ANSI/TIA-568.2-D

● ANSI/TIA-1096-A (FCC Part 68)

● EN50173-1:2011

● UL 444

● 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

Product Description

• Part No. & Description

6SSXXSLIM: Cat.6 S/FTP 28AWF Stranded Round SLIM Patch Cord, Molded, PVC/LSOH/TPE/PUR

• Quality Assurance

100% Cat.6 Component Test for the length within 5M (provide original test data to our customer)

• Certificate

UL/ETL/4PPoE/CE Certified & Comply with RoHS & REACH

• Application

* Ethernet Networking

* Computer Networking Project

* Audio & Data Transmission

* Digital Networking

* Broadband Networking Communication

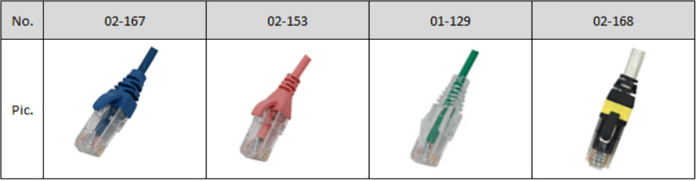

• Standard Color Code

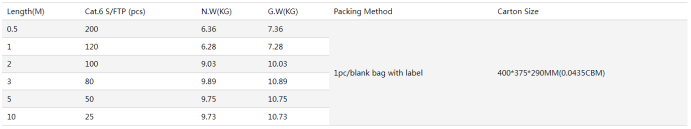

• Standard Package Rate

Product Constructure

Wire Colour Code

white - blue/blue

white - orange/orange

white - green/green

white - brown/brown

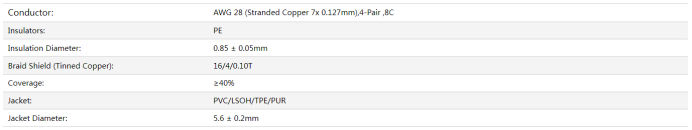

• Component

• Electrical Characteristics

• Mechanical characteristics

OEM/ODM Case

With more than 35 years history and profession R & D team

We have rich experiences in producing OEM/ODM cases

•  Customized Logo on Plug & Boot

•  Special Printing on Cable

•  Special Design on Package & Label

•  Independent Package

•  Different Color & Different Lengths Available

•  Different Molding/Strain Relief

   We can also design it according to our customer's specific demand!
